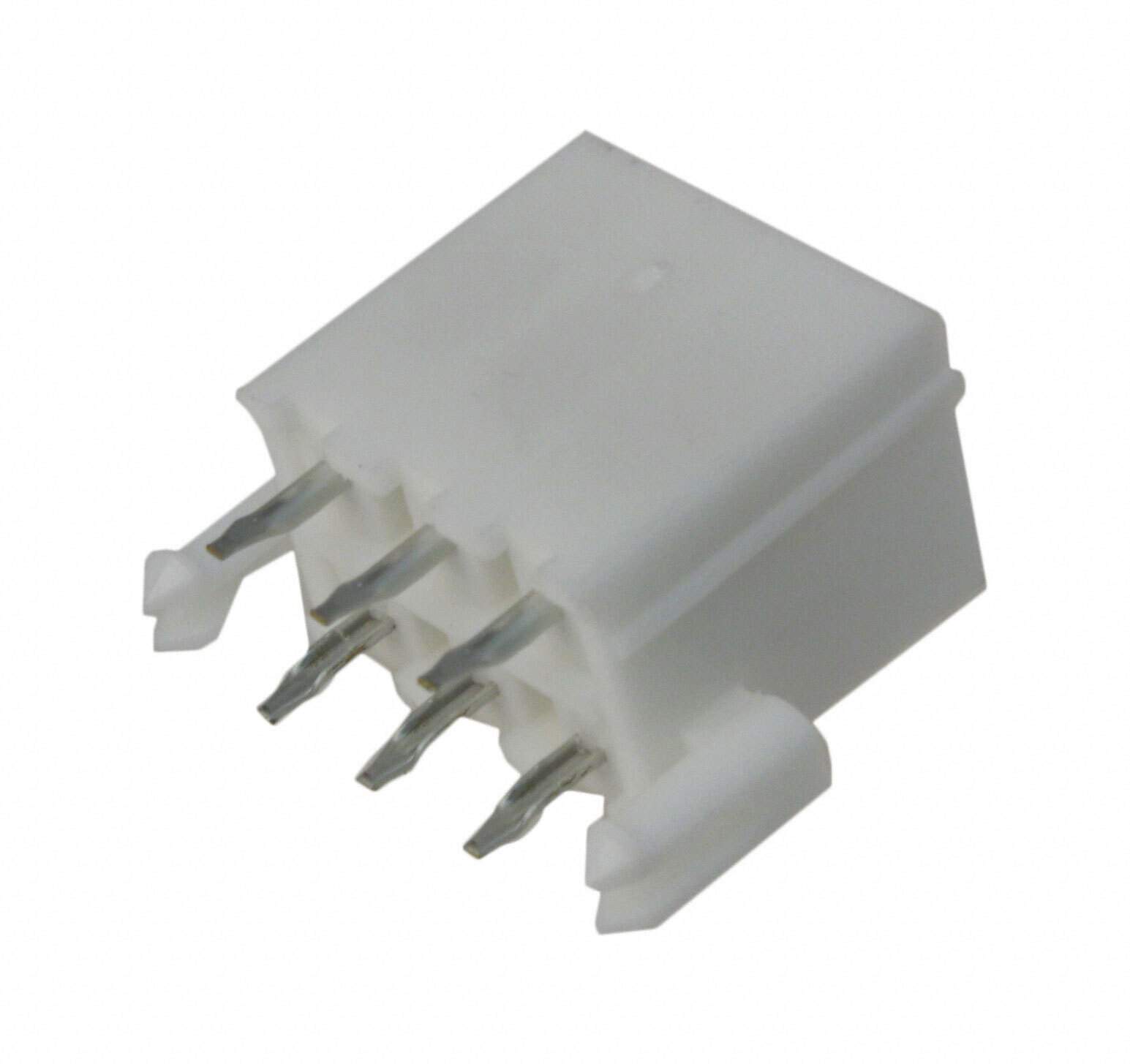

0039299069

Name: 0039299069
Brand: Molex, LLC
SKU: 855854
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	0039299069
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 4.2MM / Connector Header Through Hole 6 position 0.165" (4.20mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex, LLC
Series	Mini-Fit Jr 5566
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.165" (4.20mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.138" (3.50mm)
Insulation Height	0.504" (12.80mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	Board Lock
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	General Purpose, Industrial, Telecommunications
Base Product Number	003929
Standard Package	3,840 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	855854-0039299069
Ultra Librarian 3D Model	Ultra Librarian 0039299069 CAD Model

Alternative Products

Description

The 794257 is a rectangular connector header from Molex, LLC.

Series: Mini-Fit Jr 5566
Positions: 6
Features: Board lock
Connector Type: Header, Male Pins
Loading: All positions loaded
Rows: 2
Termination: Solder
Fastening Type: Locking ramp
Package: Tray
Standard Package: 3,840 pieces
Contact Material: Brass
Insulation Material: Polyamide (PA66), nylon 6/6
Style: Board to cable/wire
Pitch (mating): 0.165" (4.20mm)
Contact Finish (mating): Gold, 30.0μin (0.76μm)
Contact Finish (post): Tin, 100.0μin (2.54μm)
Insulation Color: Natural
Mounting: Through hole
Shrouding: Shrouded - 4 wall
Row Spacing (mating): 0.165" (4.20mm)
Contact Length (post): 0.138" (3.50mm)
Insulation Height: 0.504" (12.80mm)
Contact Shape: Square
ECCN: EAR99
REACH Status: Unaffected
HTSUS Code: 8536.69.4040
Product Status: Active
