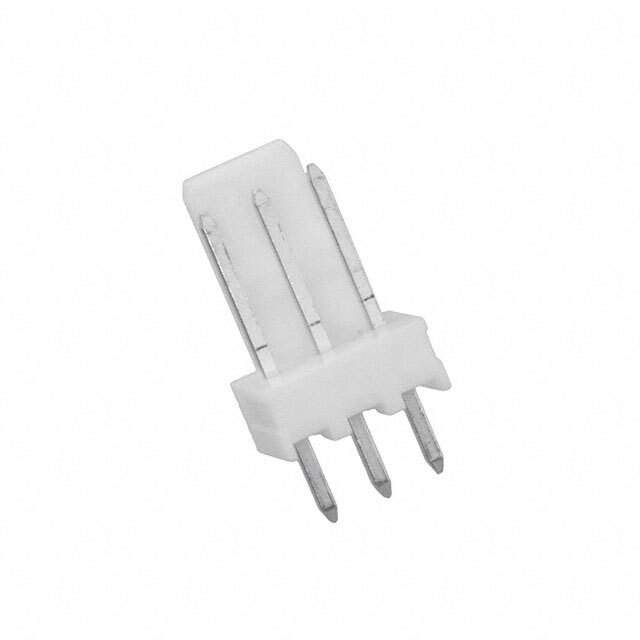

0022272031

Part No 0022272031
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 2.54MM / Connector Header Through Hole 3 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series KK254, 6410
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 3
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.560" (14.22mm)
Insulation Height 0.461" (11.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features -
Temperature Range - Operating -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 002227
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,000 pcs
Win Source Part Number 1380350-0022272031
Ultra Librarian 3D Model Ultra Librarian 0022272031 CAD Model

Description

The Molex KK254 6410 is a male pin header connector used in various applications including automotive, general purpose, medical, and telecommunications.

  • Applications: automotive, general purpose, medical, and telecommunications
  • Connector Type: rectangular
  • Positions: 3
  • Rows: single
  • Material: brass
  • Termination Type: solder
  • Fastening: friction lock
  • Insulation Material: polyamide (PA) and nylon
  • Contact Finish: tin
  • Contact Finish Thickness: 100.0µin (2.54µm)
  • Shrouded: 1 wall
  • Contact Shape: square
  • Contact Length: 0.560" (14.22mm)
  • Connection Type: board-to-cable/wire
  • Pitch: 0.100" (2.54mm)
  • Flammability Rating: UL94 V-0
