0010894106

Get a Quote

Part No	0010894106
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors

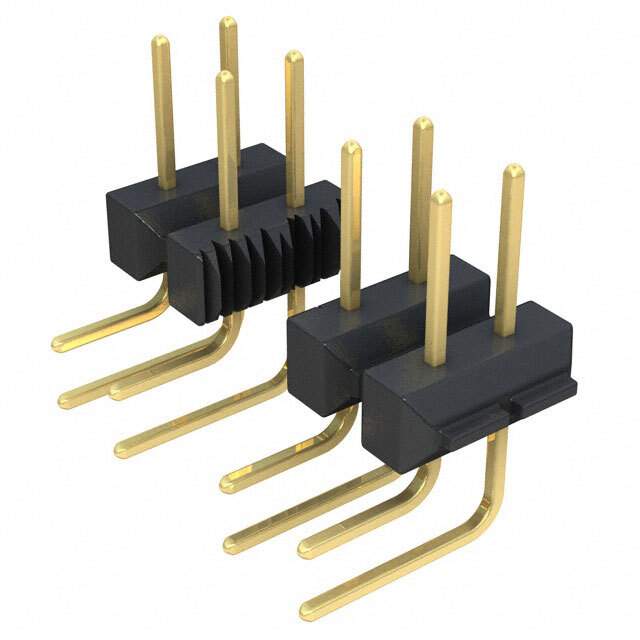

Description	CONN HEADER R/A 10POS 2.54MM / Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex, LLC
Series	C-Grid 70216
Package	Tube
Product Status	Active
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.110" (2.79mm)
Insulation Height	0.220" (5.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	74.8µin (1.90µm)
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Base Product Number	001089
Standard Package	1 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853097-0010894106
Ultra Librarian 3D Model	Ultra Librarian 0010894106 CAD Model

Description

The C-Grid 70216 series is a 10-position male pin header connector designed for use in various electronic applications.

Series: C-Grid 70216
Feature: breakaway header
Application: board to board or cable connections
Contact Material: copper alloy
Applications: automotive, general purpose, lighting, medical, and telecommunications
Mounting: through-hole and right angle
Pitch: 0.100" (2.54mm)
Contact Finish: gold
Insulation Material: polyester and glass filled
Design: compact and unshrouded
Insulation Height: 0.220" (5.60mm)
Status: active
Standard Package: 1 pcs
