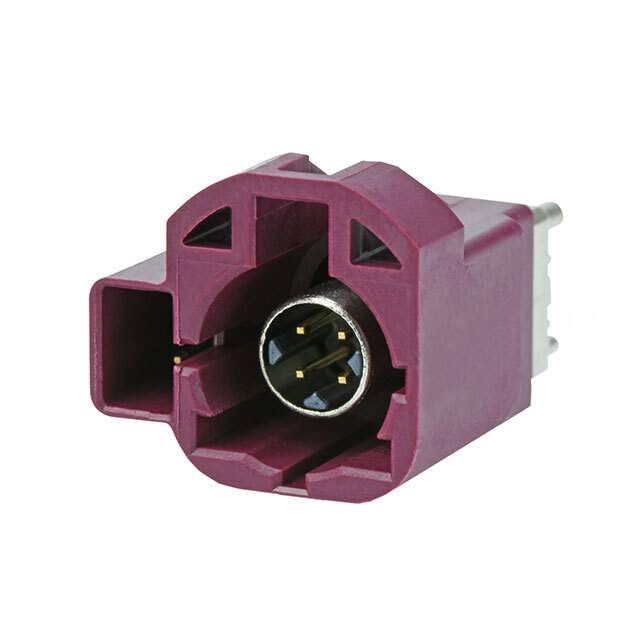

R41-A717D Real Image
Same model may have multiple batches, images only for reference.

R41-A717D

Part No R41-A717D
Manufacturer Mitsumi
Catalog Coaxial Connectors (RF)
Description CONN HSD 4+2 NORMAL VERTICAL TYP  /  HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole Solder
Datasheet
R41-A717D Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Mitsumi Electric Company Ltd
Series HSD
Package Tape & Reel
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Type Through Hole
Fastening Type Latch Lock
Frequency - Max 2 GHz
Number of Ports 1
Features Board Guide, Code D
Housing Color Violet, Claret
Center Contact Material Copper Alloy
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 100 V
Mating Cycles 25
Insertion Loss 0.10dB
Base Product Number R41-A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names P124191-6,P124191-2,P124191-1,R41-B277D
Standard Package 150
Win Source Part Number 1087224-R41-A717D
Ultra Librarian 3D Model Ultra Librarian R41-A717D CAD Model

Description

The HSD Fakra Quadraxial connector is a male pin plug connector manufactured by Mitsumi Electric Company that features a board guide, code D, and a latch lock fastening type.

  • Connector Type: Male Pin Plug
  • Features: Board Guide, Code D, Latch Lock
  • Housing Color: Violet and Claret
  • Impedance: 100 Ohm
  • Connector Style: HSD
  • Number of Ports: 1
  • Category: Coaxial Connectors (RF)
  • Package: Tape and Reel
  • Temperature Range: -40°C to 105°C
  • Mounting Type: Through Hole
