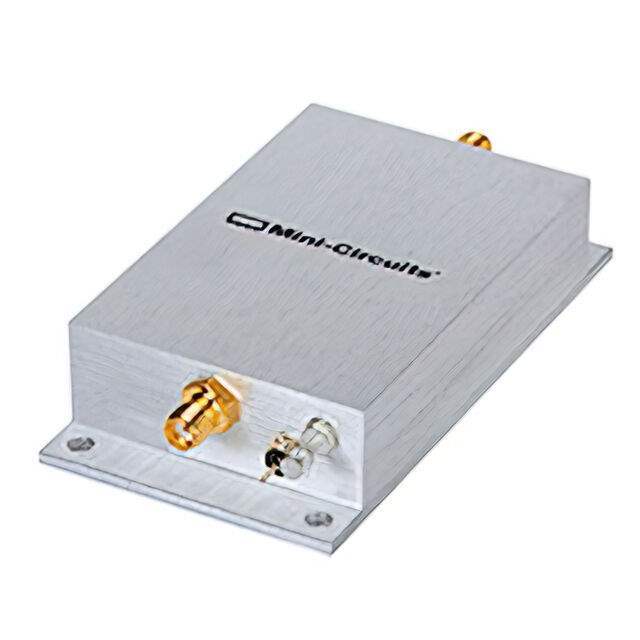

ZRL-2400LN+ Mini-Circuits
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Bulk
Product Status Active
Frequency 1GHz ~ 2.4GHz
P1dB 24dBm
Gain 28dB
Noise Figure 1.2dB
RF Type Cellular, GSM, PCS, UMTS
Voltage - Supply 12V
Current - Supply 470mA
Test Frequency 1.9GHz ~ 2.4GHz
Grade -
Mounting Type Chassis Mount
Package / Case Module, SMA Connectors
Ultra Librarian 3D Model Ultra Librarian ZRL-2400LN+ CAD Model

Description

Features

  • High IP3, +39 dBm typ.
  • Low Noise figure, 1.2 dB typ.
  • Broadband flat gain response
  • Internal voltage regulated
  • Over-voltage and transient protected
