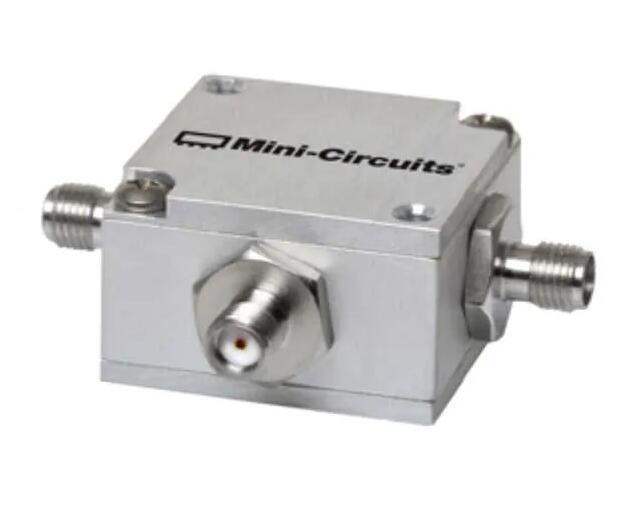

ZFSC-2-1WDC-S+ Mini-Circuits
Same model may have multiple batches, images only for reference.

ZFSC-2-1WDC-S+

Part No ZFSC-2-1WDC-S+
Manufacturer Mini-Circuits
Catalog RF and Wireless >RF Power Dividers/Splitters
Description 2 WAYS DC PASS PS, 1 - 750 MHZ
Datasheet
ZFSC-2-1WDC-S+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

ZFSC-2-1WDC-S+ is a 2-way 0° splitter/combiner supporting applications from 1 to 750 MHz such as VHF/UHF communications. This model is capable of handling up to 1W RF input power and passing up to 30mA DC current (15mA per port) from input to output. It provides very low insertion loss of just 0.4 dB, low phase and amplitude unbalance of 0.5° and 0.1 dB, respectively, and outstanding isolation of 28 dB. The ZFSC-2-1WDC-S+ comes housed in a rugged aluminum alloy case measuring 1.25 x 1.25 x 0.75" with SMA connectors at all ports.
