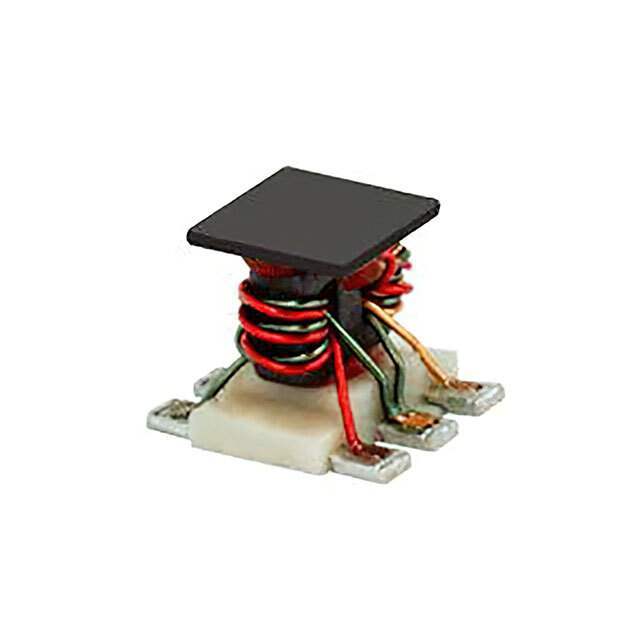

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1306664-TTCM4-4X+
Category RF and Wireless Balun
Manufacturer Mini-Circuits
Packaging Tape & Reel (TR)
Part Status Active
Frequency Range 500kHz ~ 400MHz
Impedance - Unbalanced/Balanced 1:4
Phase Difference 1°
Insertion Loss (Max) 3dB
Return Loss (Min) 10.01dB
Package / Case 6-SMD, Flat Leads
Ultra Librarian 3D Model Ultra Librarian TTCM4-4X+ CAD Model

Description

  • wideband, 0.5 to 400 MHz
  • excellent amplitude (0.1 dB typ.) and phase unbalance (1° typ.)
  • plastic base with solder plated leads
  • aqueous washable Applications
  • impedance matching
