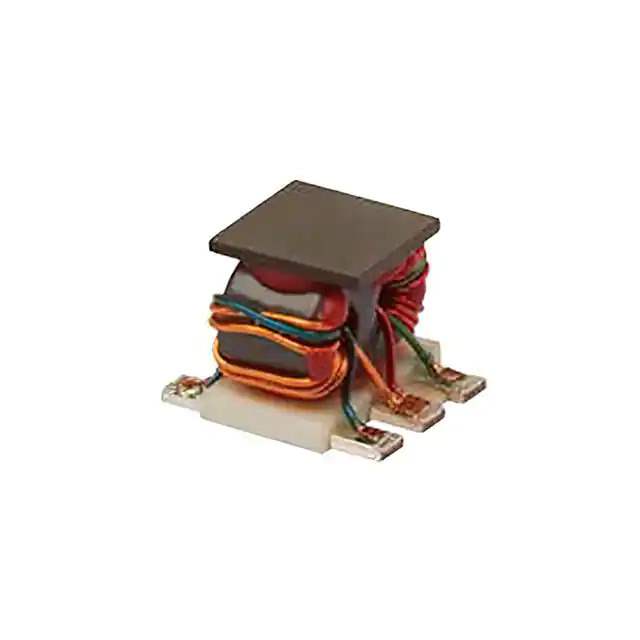

TC4-13TX+ Real Image
Same model may have multiple batches, images only for reference.

TC4-13TX+

Part No TC4-13TX+
Manufacturer Mini-Circuits
Catalog Balun
Description 1:4 CORE & WIRE TRANSFORMER, 100
Datasheet
TC4-13TX+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 100MHz ~ 1GHz
Phase Difference 9°
Insertion Loss (Max) 1.4dB
Return Loss (Min) 8.71dB
Package / Case 5-SMD Module
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 716530-TC4-13TX+
Ultra Librarian 3D Model Ultra Librarian TC4-13TX+ CAD Model

Description

The 716530-TC4-13TX+ is a balun designed for RF and wireless systems, manufactured by Mini-Circuits.

  • Frequency Range: 100MHz to 1GHz
  • Phase Difference: 9°
  • Insertion Loss (maximum): 1.4dB
  • Return Loss (minimum): 8.71dB
  • Package: 5-SMD module
  • Standard Package: 2,000 pcs
