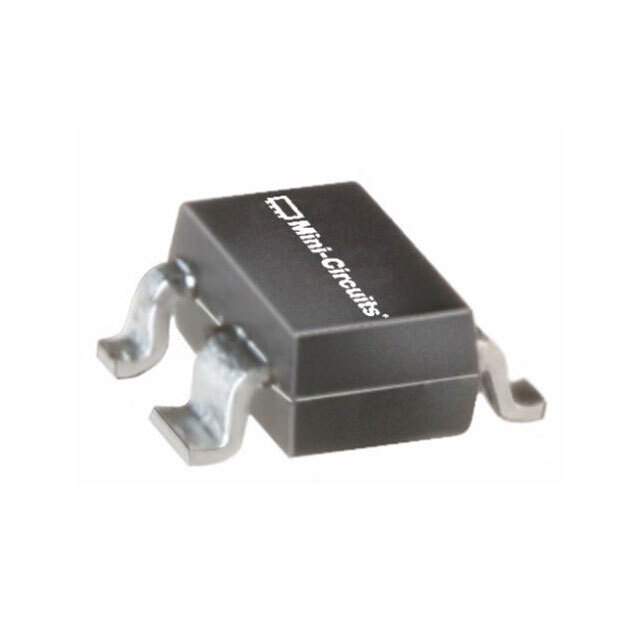

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 50MHz ~ 4GHz
P1dB 19.8dBm
Gain 18.4dB
Noise Figure 0.75dB
RF Type Cellular, GSM, GPS, ISM, LTE, WCDMA, WiMAX, WLAN
Voltage - Supply 3V, 5V
Current - Supply 58mA
Test Frequency 1GHz
Mounting Type Surface Mount
Package / Case SC-82A, SOT-343
Supplier Device Package MMM1362
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 281576-PSA4-5043+
Ultra Librarian 3D Model Ultra Librarian PSA4-5043+ CAD Model

Description

The 281576-PSA4-5043+ is an RF amplifier designed for applications in the RF and wireless category.

  • Frequency Range: 50MHz to 4GHz
  • Applications: cellular, GSM, GPS, ISM, LTE, WCDMA, WiMAX, and WLAN
  • Gain: 18.4dB
  • Noise Figure: 0.75dB
  • Supply Voltage: 3V or 5V
  • Current: 58mA
  • Package Type: SC-82A, SOT-343
  • Packaging: tape and reel
  • Standard Package: 3,000 pcs
  • Manufacturer: Mini-Circuits
  • Status: active
