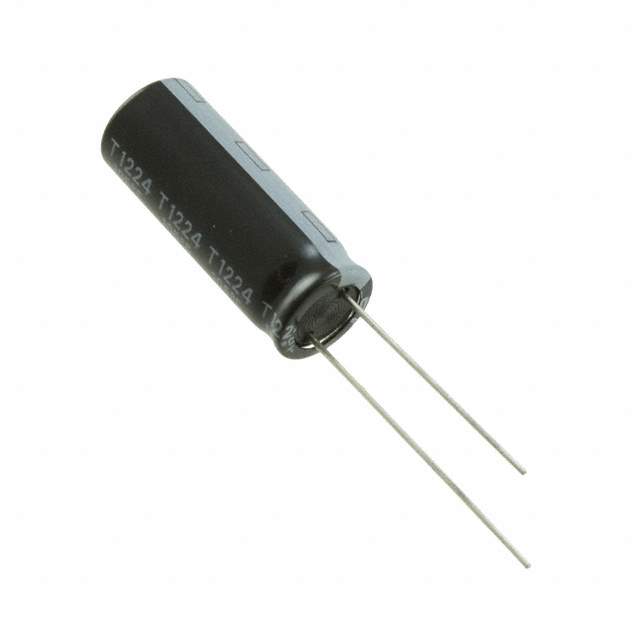

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXW
Package Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 500 mA @ 120 Hz
Ripple Current @ High Frequency 1.25 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-3196
Standard Package 400
Win Source Part Number 1150369-450BXW47MEFR16X25
Ultra Librarian 3D Model Ultra Librarian 450BXW47MEFR16X25 CAD Model

Description

The 450BXW47MEFR16X25 capacitor is a high-quality aluminum electrolytic capacitor that is ideal for general-purpose applications manufactured by Rubycon.

  • Capacitance: 47 µF
  • Voltage Rating: 450 V
  • Tolerance: ±20%
  • ESR: Not Specified
  • Lifetime: 12000 Hrs @ a temperature of 105°C
  • Polarization: Polar
  • Mounting Type: Through-Hole
  • Package/Case: Radial and Can
  • Dimensions: 0.630" Dia (16.00mm)
  • Temperature Range: -40°C to 105°C
  • Ripple Current @ Low Frequency: 500 mA @ 120 Hz
  • Ripple Current @ High Frequency: 1.25 A @ 100 kHz
