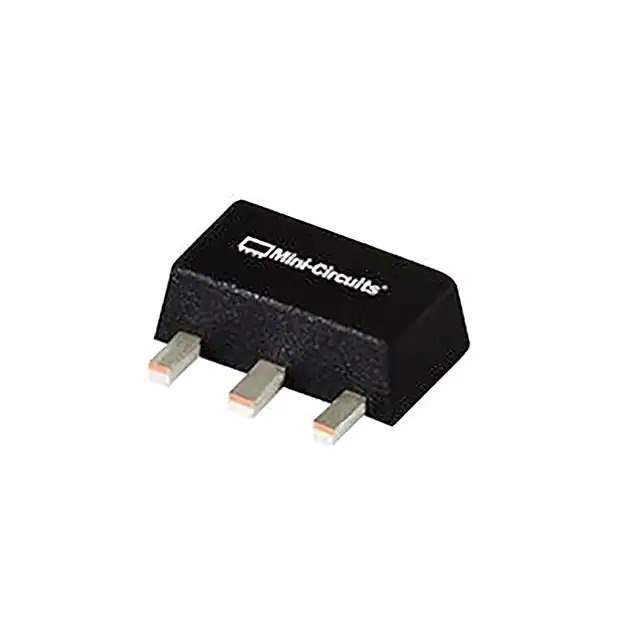

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 50MHz ~ 6GHz
P1dB 22.7dBm
Gain 9.7dB
Noise Figure 3.5dB
RF Type CATV, DBS, LTE, MMDS, Wireless LAN
Voltage - Supply 4.8V ~ 5.2V
Current - Supply 146mA
Test Frequency 3GHz ~ 4GHz
Mounting Type Surface Mount
Package / Case TO-243AA
Supplier Device Package SOT-89
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 273826-PHA-1+
Ultra Librarian 3D Model Ultra Librarian PHA-1+ CAD Model

Description

The Mini-Circuits 273826-PHA-1+ is an RF amplifier designed for RF and wireless applications.

  • Frequency Range: 50MHz to 6GHz
  • Suitable for: a variety of RF applications including CATV, DBS, LTE, MMDS, and wireless LAN
  • Gain: 9.7dB
  • Noise Figure: 3.5dB
  • Supply Voltage: 4.8V to 5.2V
  • Current Consumption: 146mA
  • Mounting: surface mountable
  • Package: TO-243AA
  • Supplier Device Package: SOT-89
  • Package: tape & reel
  • Standard Package: 1,000 pcs
  • Status: active
  • Supplier: Mini-Circuits
  • ECCN: EAR99
  • MSL Level: 1
  • Floor Life: unlimited
  • Commonly Used In: RF and wireless systems where signal amplification is required
