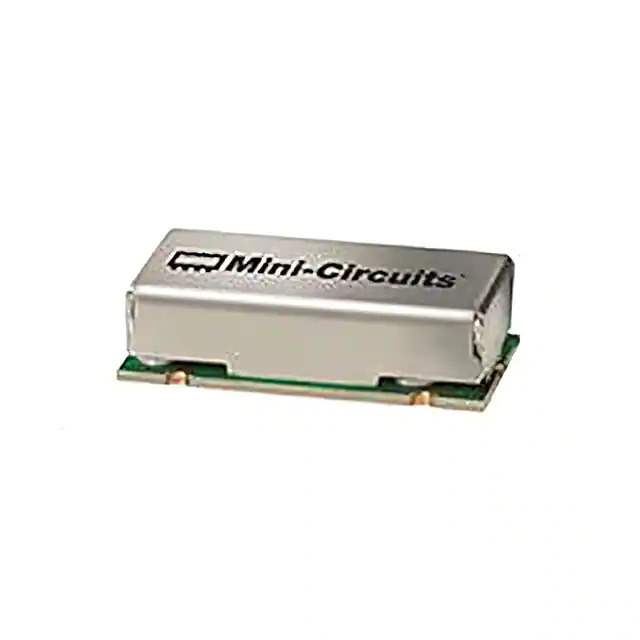

BPF-B157+ Real Image
Same model may have multiple batches, images only for reference.

BPF-B157+

Part No BPF-B157+
Manufacturer Mini-Circuits
Catalog RF Filters
Description RF FILTER BAND PASS 157MHZ 6SMD
Datasheet
BPF-B157+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 157MHz Center
Bandwidth 12MHz
Filter Type Band Pass
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.826" L x 0.472" W (20.98mm x 11.99mm)
Height (Max) 0.220" (5.59mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 864466-BPF-B157+
Ultra Librarian 3D Model Ultra Librarian BPF-B157+ CAD Model

Description

The 864466-BPF-B157+ is a band pass RF filter designed for various applications. It is part of the Mini-Circuits series of electronic components.

  • Frequency Range: 157MHz
  • Bandwidth: 12MHz
  • Size: 0.826" L x 0.472" W (20.98mm x 11.99mm)
  • Height: 0.220" (5.59mm)
  • Mounting Type: Surface Mount
  • Product Status: Active
  • Package: Tape & Reel
  • Package Quantity: 500
