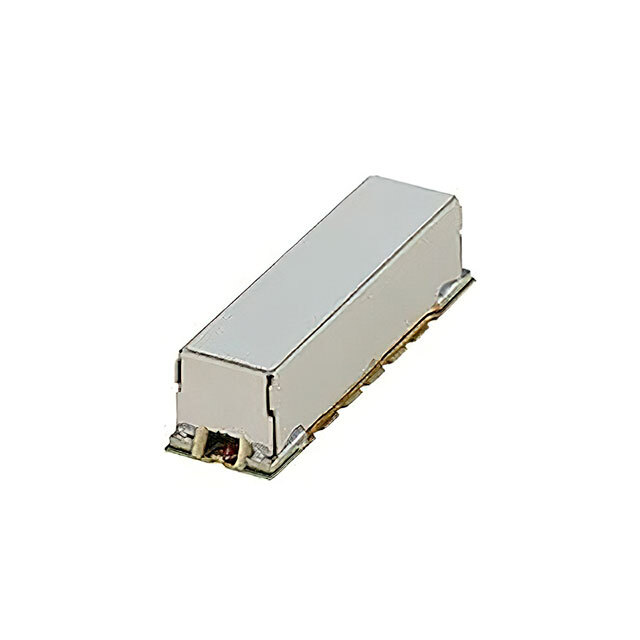

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category FiltersRF Filters
Manufacturer Mini-Circuits
Part Status Active
Frequency 400MHz Center
Bandwidth 20MHz
Filter Type Band Pass
Mounting Type Surface Mount
Package / Case 18-SMD, No Lead
Size / Dimension 1.360" L x 0.730" W (34.54mm x 18.54mm)
Height (Max) 0.350" (8.89mm)
Ultra Librarian 3D Model Ultra Librarian BPF-A400+ CAD Model
