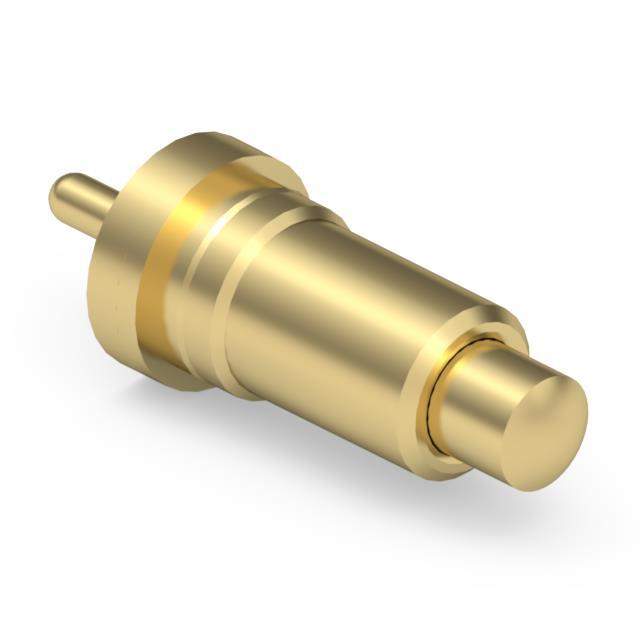

0861-0-15-20-82-14-11-0 Real Image
Same model may have multiple batches, images only for reference.

0861-0-15-20-82-14-11-0

Part No 0861-0-15-20-82-14-11-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Contacts, Spring Loaded and Pressure
Description CONTACT SPRING LOADED T/H GOLD / Contact Spring Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Contacts, Spring Loaded (Pogo Pins), and Pressure
Mfr Mill-Max Manufacturing Corp.
Series 861
Package Bulk
Contact Type Sleeve & Plunger (Pogo Pins)
Mounting Type Through Hole
Maximum Working Height 0.400" (10.16mm)
Recommended Working Height 0.360" (9.14mm)
Minimum Working Height 0.320" (8.13mm)
Pad Layout Dimension Circular - 0.187" (4.75mm) (TH)
Operating Force - Initial 25gf
Operating Force - Mid Compression 100gf
Plunger Size 0.092" (2.34mm) Dia
Mating Cycles 1000000
Contact Material Brass Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Current Rating (Amps) 9.6A
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 0861-0
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350559-0861-0-15-20-82-14-11-0
Ultra Librarian 3D Model Ultra Librarian 0861-0-15-20-82-14-11-0 CAD Model

Description

The Mill-Max Manufacturing Corp. 861 series contact is a spring-loaded plunger (Pogo Pin) type contact.

  • Series: 861
  • Type: Spring-Loaded Plunger (Pogo Pin)
  • Contact Finish: Gold, 20.0µin (0.51µm)
  • Contact Material: Brass Alloy
  • Mounting Type: Through Hole
  • Maximum Working Height: 0.400" (10.16mm)
  • Recommended Working Height: 0.360" (9.14mm)
  • Minimum Working Height: 0.320" (8.13mm)
  • Plunger Size: 0.092" (2.34mm) diameter
  • Operating Force: 25gf Initial Compression, 100gf Mid-Compression
