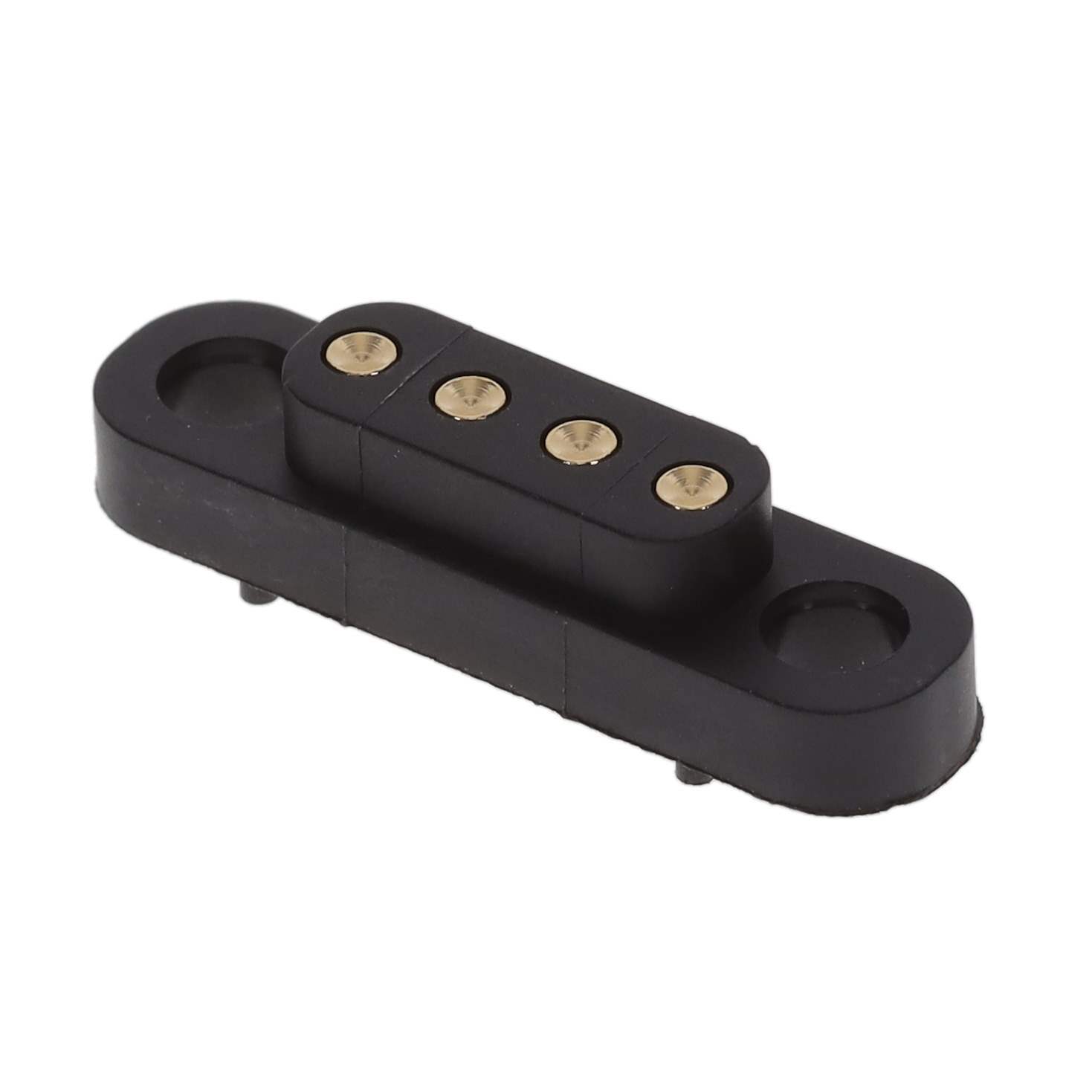

• Rugged Modular contacts for use on 4mm grid, supplied in 2 - 6 position connectors
• Precision-machined piston / base and gold-plated components assure up to 1,000,000 cycle life durability. Pistons have a 1,14 mid. stroke and a 2,29 max. stroke
• Mounting tabs provide a means for secure attachment to the PCB and may be specified with or without threaded inserts
• Low resistance, high current contacts are rated at 9 amps @ 10°C Temperature rise
• High temperature thermoplastic insulators are suitable for wave and reflow processes
• Series 858-22-00X-10-0X1101 connectors are designed for manual placement into 1,22±0,076 Ø plated through-holes in the circuit board prior to soldering
• Series 858-22-00X-30-0X1101 and 858-22-00X-30-6X1101 connectors are designed for manual placement onto 2,54 Ø solder pads
