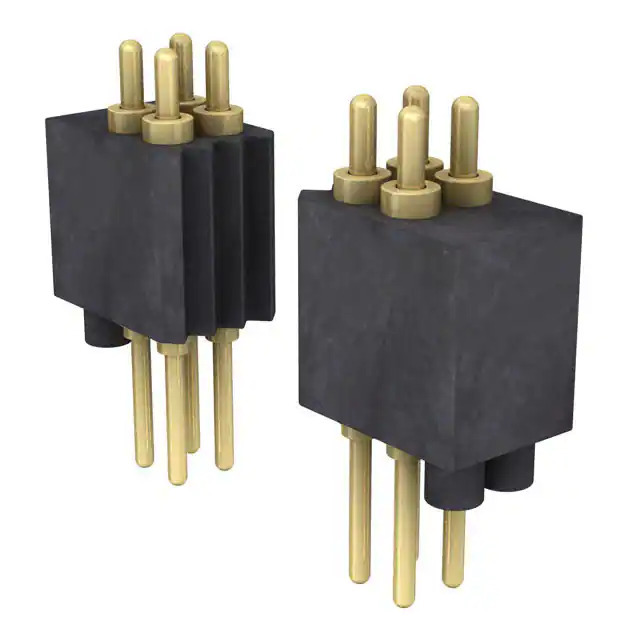

Same model may have multiple batches, images only for reference.
855-22-008-10-001101 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

855-22-008-10-001101

Part No 855-22-008-10-001101
Manufacturer Mill-Max Manufacturing Corp.
Catalog Contacts, Spring Loaded and Pressure
Description CONN SPRING PISTON 8POS PCB / 8 Position Spring Piston Connector Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Spring Loaded
Mfr Mill-Max Manufacturing Corp.
Series 855
Package Tube
Product Status Active
Connector Type Piston
Number of Contacts 8
Pitch 0.050" (1.27mm)
Number of Rows 2
Row Spacing 0.050" (1.27mm)
Mounting Type Through Hole
Material Brass Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Base Product Number 855-22
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1354082-855-22-008-10-001101
Ultra Librarian 3D Model Ultra Librarian 855-22-008-10-001101 CAD Model

Description

The 855-22-008-10-001101 is a rectangular spring-loaded connector from Mill-Max Manufacturing Corp.

  • Contacts: 8
  • Mounting Type: Through Hole
  • Pitch: 0.050" (1.27mm)
  • Row Spacing: 0.050" (1.27mm)
  • Material: Brass Alloy
  • Contact Finish: Gold, 20.0μin (0.51μm)
  • REACH: Unaffected
  • ECCN: EAR99
