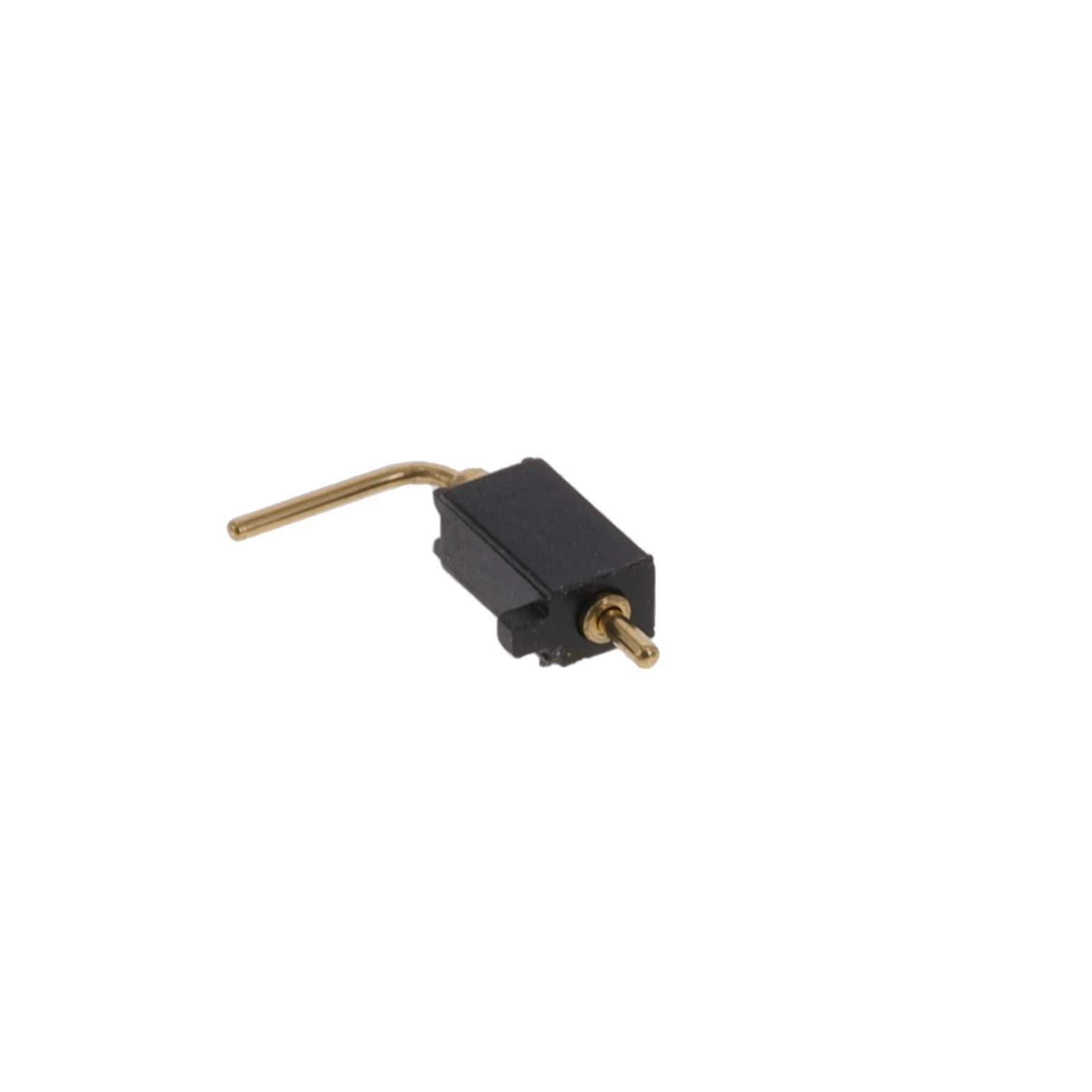

854-22-001-20-601101 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

854-22-001-20-601101

Part No 854-22-001-20-601101
Manufacturer Mill-Max Manufacturing Corp.
Catalog Rectangular Connectors
Description CONN SPRING PISTON 1POS R/A PCB
Datasheet
854-22-001-20-601101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1305411-854-22-001-20-601101
Manufacturer Mill-Max Manufacturing Corp.
Category Connectors, Interconnects -Rectangular Connectors -Spring Loaded
Packaging  Bulk
Part Status Active
Connector Type Piston
Number of Contacts 1
Mounting Type Through Hole, Right Angle
Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Ultra Librarian 3D Model Ultra Librarian 854-22-001-20-601101 CAD Model

Description

Connector Header Through Hole 60 position 0.050" (1.27mm)
