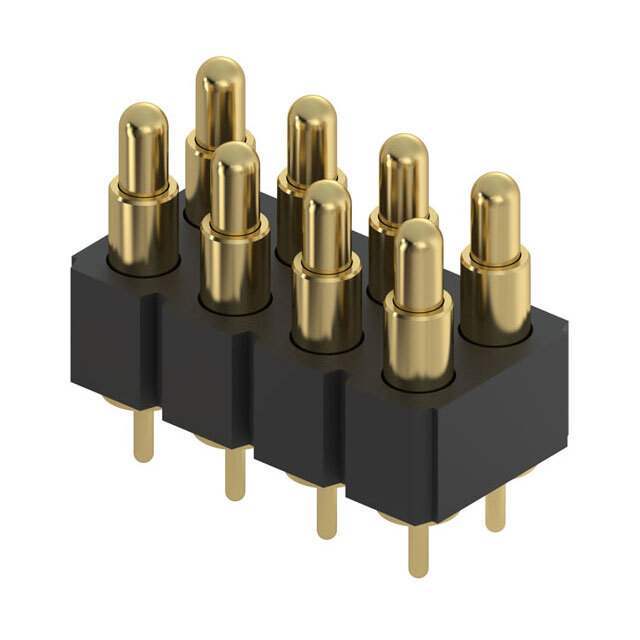

• Modular contacts for use on .100” grid, available in ten heights from .255” to .430”, supplied in single and double row contact strips
• Precision-machined piston / base and gold-plated components assure up to 1,000,000 cycle life durability
• Pistons have a .0275” mid stroke & .055” max. stroke
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• High temperature thermoplastic insulators are suitable for surface mount processes
• Both 816 & 818 series contact strips are designed for manual placement into Ø .030”±.003” plated through-holes in the circuit board prior to intrusive reflow soldering
