Same model may have multiple batches, images only for reference.

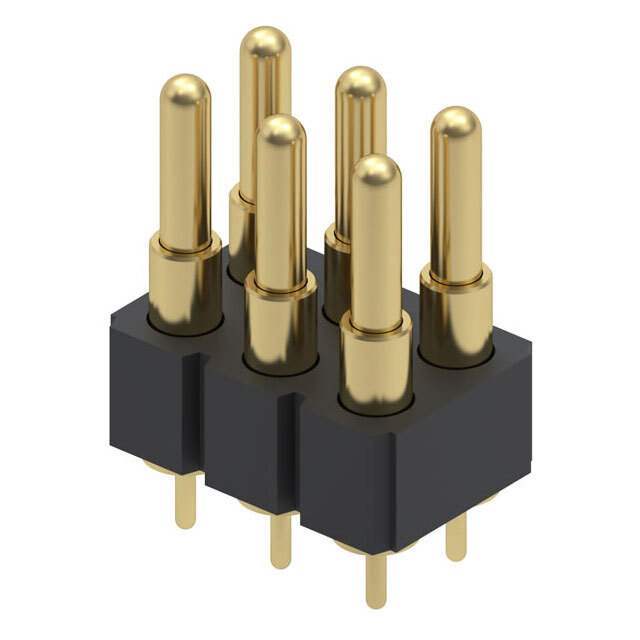

818-22-006-10-005101 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

818-22-006-10-005101

Part No 818-22-006-10-005101
Manufacturer Mill-Max Manufacturing Corp.
Catalog Rectangular Connectors
Description CONN SPRING PISTON 6POS PCB
Datasheet
818-22-006-10-005101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1305409-818-22-006-10-005101
Manufacturer Mill-Max Manufacturing Corp.
Category Connectors, Interconnects -Rectangular Connectors -Spring Loaded
Packaging  Tube
Part Status Active
Connector Type Piston
Number of Contacts 6
Pitch (mm) 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian 818-22-006-10-005101 CAD Model

Description

• Modular contacts for use on .100” grid, available in ten heights from .255” to .430”, supplied in single and double row contact strips
• Precision-machined piston / base and gold-plated components assure up to 1,000,000 cycle life durability
• Pistons have a .0275” mid stroke & .055” max. stroke
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• High temperature thermoplastic insulators are suitable for surface mount processes
• Both 816 & 818 series contact strips are designed for manual placement into Ø .030”±.003” plated through-holes in the circuit board prior to intrusive reflow soldering
