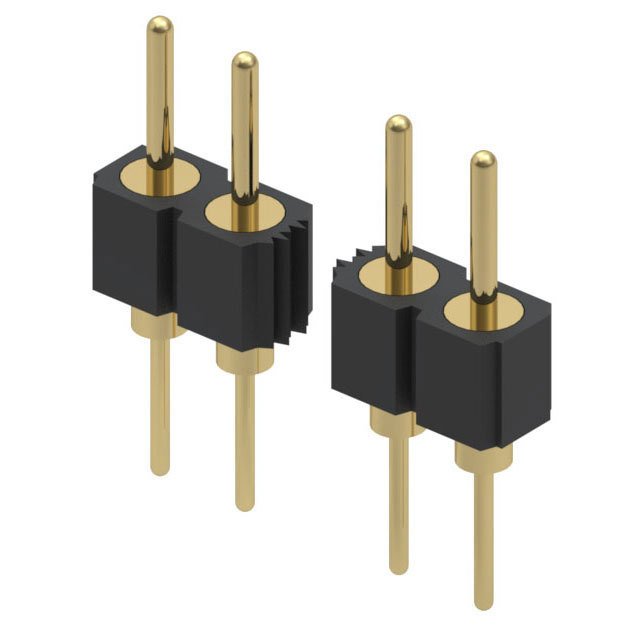

Same model may have multiple batches, images only for reference.

350-10-163-00-001000

Name: 350-10-163-00-001000
Brand: Mill-Max Manufacturing Corp.
SKU: 447040
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	350-10-163-00-001000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	CONN STRIP HEADER 63POS .100
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	63
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.166" (4.22mm)
Contact Length - Post	0.157" (4.00mm)
Overall Contact Length	0.477" (12.12mm)
Insulation Height	0.110" (2.79mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Contact Finish - Post	Gold
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Insulation Color	Black
Contact Finish Thickness - Post	10μin (0.25μm)
Win Source Part Number	1032183-350-10-163-00-001000
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	1
Ultra Librarian 3D Model	Ultra Librarian 350-10-163-00-001000 CAD Model

Alternative Products

Description

The Mill-Max Manufacturing Corp. 350-10-163-00-001000 is a board-to-board type of connector that is used in various applications.

Supply and Demand Status: Balanced
Positions: 63
Type: Male pin header
Pitch-Mating: 2.54mm
Contact Finish (Mating): Gold
Contact Finish (Post): Gold
Thickness: 10μin (0.25μm)
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
Insulation Color: Black
