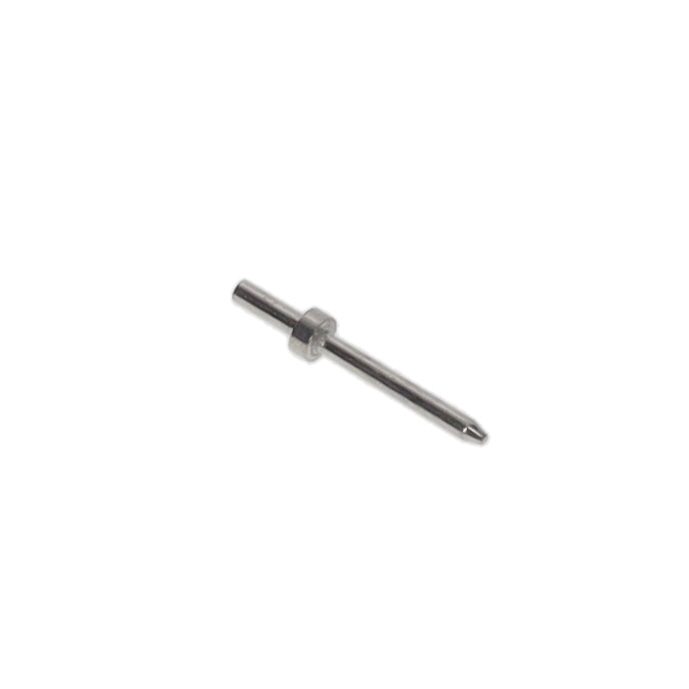

Same model may have multiple batches, images only for reference.
3128-1-00-21-00-00-08-0 Mill-Max Manufacturing Corp. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

3128-1-00-21-00-00-08-0

Part No 3128-1-00-21-00-00-08-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals - PC Pin, Single Post Connectors
Description CONN PC PIN CIRC .020DIA GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Terminal Type PC Pin
Terminal Style Single End
Pin Size - Above Flange 0.020" (0.51mm) Dia
Pin Size - Below Flange 0.020" (0.51mm) Dia
Length - Above Flange 0.250" (6.35mm)
Length - Below Flange 0.100" (2.54mm)
Length - Overall 0.370" (9.40mm)
Flange Diameter 0.046" (1.17mm)
Mounting Hole Diameter 0.024" (0.61mm)
Mounting Type Through Hole
Termination Solder
Insulation Non-Insulated
Contact Material Brass Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1629763-3128-1-00-21-00-00-08-0
Ultra Librarian 3D Model Ultra Librarian 3128-1-00-21-00-00-08-0 CAD Model
