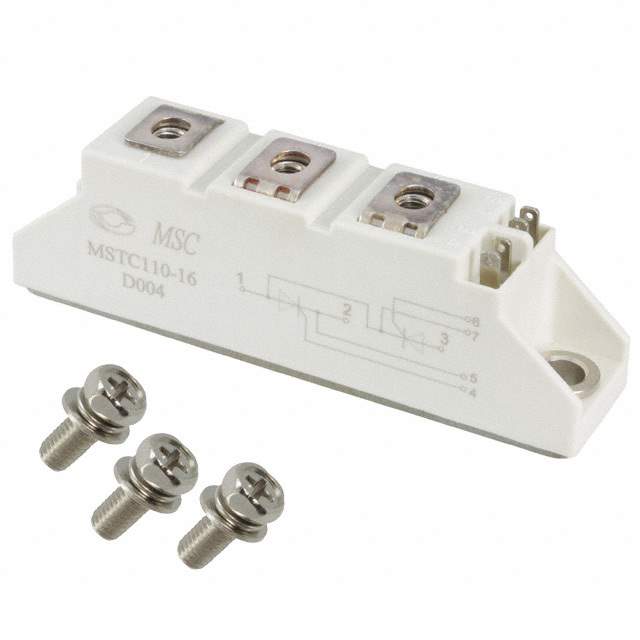

MSTC110-16 Real Image
Same model may have multiple batches, images only for reference.

MSTC110-16

Part No MSTC110-16
Manufacturer Microsemi Corporation
Catalog SCRs - Single - Modules
Description POWER MOD THYRISTOR/DIODE T1 / SCR Module 1600V 2250A 7-Pin Case T-1
Datasheet
MSTC110-16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Part Status Obsolete(EOL)
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1600V
Current - On State (It (AV)) (Maximum) 110A
Voltage - Gate Trigger (Vgt) (Maximum) 3V
Current - Gate Trigger (Igt) (Maximum) 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 2250A @ 50Hz
Current - Hold (Ih) (Maximum) 250mA
Operating Temperature Range -40°C ~ 130°C (TJ)
Mounting Screw Mount
Package Module
Win Source Part Number 789864-MSTC110-16
Popularity Medium
Supply and Demand Status Limited
Family Name MSTC110-16
Introduction Date October 19, 2011
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MSTC110-16 CAD Model

Description

The Microsemi Corporation 789864-MSTC110-16 is a module that comes in bulk packaging and is mounted using screw mount.

  • Operating Temperature: -40°C ~ 130°C (TJ)
  • Voltage Off State: 1600V
  • SCR Connection: Series
  • SCRs and Diodes: Two SCRs and diodes
  • Family Name: MSTC110-16
  • Category: Discrete Semiconductor Products
  • Voltage Gate Trigger (Vgt) (maximum): 3V
  • Current Gate Trigger (Igt) (maximum): 150mA
  • Introduction Date: October 19, 2011
  • ECCN: EAR99
  • Supply and Demand Status: Limited
