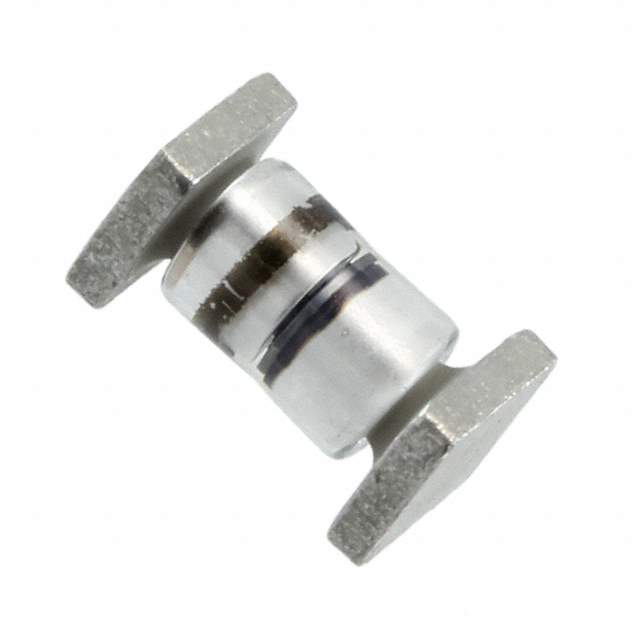

JANTXV1N5806US

Name: JANTXV1N5806US
Brand: Microsemi Corporation
SKU: 608865
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	JANTXV1N5806US
Manufacturer	Microsemi Corporation
Catalog	Diodes, Rectifiers - Single
Description	MILITARY APPROVED HIGH EFFICIENCY 2.5 AMP AND 6.0 AMP \| DIODE GEN PURP 150V 1A D5A
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Microsemi Corporation
Packaging	Bulk
Diode Type	Standard
Voltage - DC Reverse (Vr) (Maximum)	150V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Maximum) at If	875mV at 1A
Speed	Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr)	25ns
Current - Reverse Leakage at Vr	1μA at 150V
Capacitance at Vr, F	25pF at 10V, 1MHz
Mounting Style	SMD
Manufacturer Package	SQ-MELF, A
Supplier Device Package	D-5A
Operating Temperature - Junction	-65°C ~ 175°C
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1191553-JANTXV1N5806US
Manufacturer Homepage	www.microsemi.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian JANTXV1N5806US CAD Model

Alternative Products

Description

The Microsemi Corporation JANTXV1N5806US is a fast recovery diode that has a current average rectified (Io) of 1A and a reverse recovery time (trr) of 25ns.

Voltage DC Reverse (Vr) (maximum): 150V
Voltage Forward (Vf) (maximum) @ If: 875mV @ 1A
Temperature Range: -65°C to 175°C
Capacitance @ Vr, F: 25pF @ 10V, 1MHz
Package: D-5A
Popularity: Medium
Supply and Demand: Limited
