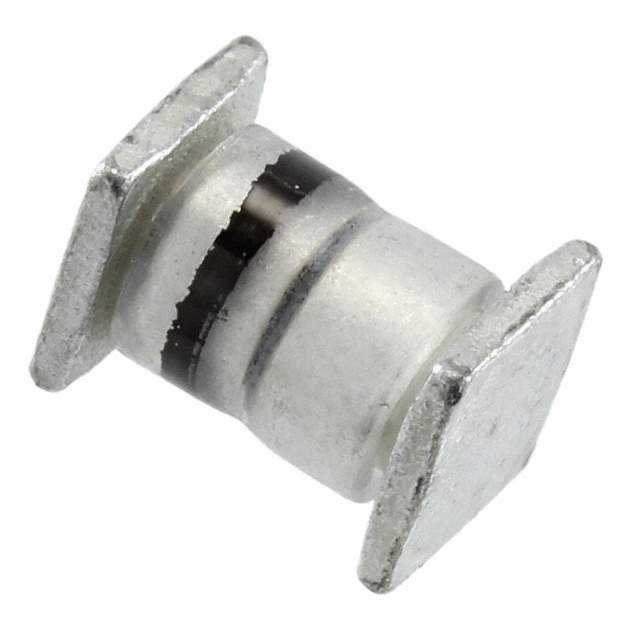

JANTX1N6638U Real Image
Same model may have multiple batches, images only for reference.

JANTX1N6638U

Part No JANTX1N6638U
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 125V 300MA B-MELF / SWITCHING DIODES
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Microsemi Corporation
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 125V
Current - Average Rectified (Io) 300mA (DC)
Voltage - Forward (Vf) (Maximum) at If 1.1V at 200mA
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 4.5ns
Current - Reverse Leakage at Vr 500nA at 125V
Mounting Style SMD
Manufacturer Package SQ-MELF, B
Supplier Device Package D-5B
Operating Temperature - Junction -65°C ~ 175°C
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814388-JANTX1N6638U
Ultra Librarian 3D Model Ultra Librarian JANTX1N6638U CAD Model

Description

{"ProductId":752670,"FormattedDescription":"

The Microsemi Corporation diode is a fast recovery diode with a maximum DC current rating of 300mA.

  • Diode Type: Standard
  • Reverse Recovery Time: 4.5ns
  • Voltage Rating: 125V DC
  • Forward Voltage: 1.1V @ 200mA
  • Package: D-5B SQ-MELF, B
  • Mounting Style: SMD
  • Operating Temperature Range: -65°C to 175°C
"}
