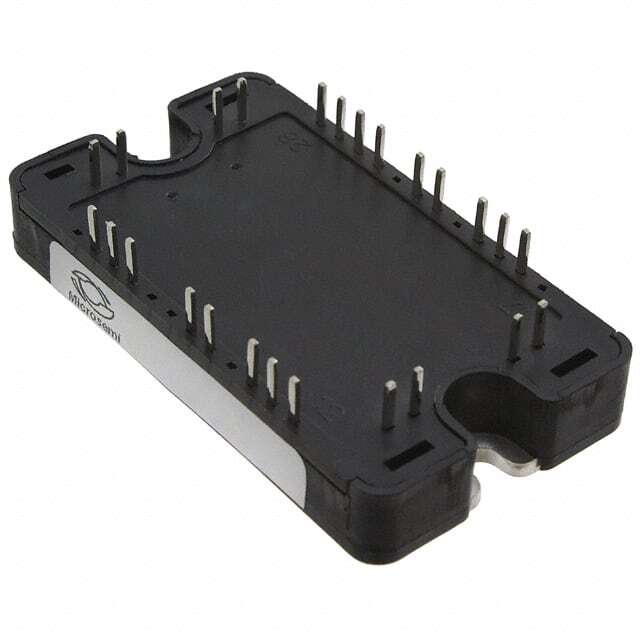

APTGF50VDA120T3G
Same model may have multiple batches, images only for reference.

APTGF50VDA120T3G

Part No APTGF50VDA120T3G
Manufacturer Microsemi Corporation
Catalog IGBTs - Modules
Description IGBT MODULE 1200V 70A 312W SP3
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Microsemi Corporation
Package Bulk
Product Status Obsolete
IGBT Type NPT
Configuration Dual Boost Chopper
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 70 A
Power - Max 312 W
Vce(on) (Max) @ Vge, Ic 3.7V @ 15V, 50A
Current - Collector Cutoff (Max) 250 µA
Input Capacitance (Cies) @ Vce 3.45 nF @ 25 V
Input Standard
NTC Thermistor Yes
Mounting Type Chassis Mount
Package / Case SP3
Supplier Device Package SP3
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 911657-APTGF50VDA120T3G
Ultra Librarian 3D Model Ultra Librarian APTGF50VDA120T3G CAD Model

Description

The 911657-APTGF50VDA120T3G is a dual boost chopper IGBT module designed for use in various applications.

  • Maximum Power: 312 W
  • IGBT Type: NPT
  • Voltage Collector Emitter Breakdown: 1200 V
  • Current Collector: 70 A
  • Input Capacitance: 3.45 nF @ 25 V
  • Features: NTC thermistor
  • Mounting Type: chassis mount
