Same model may have multiple batches, images only for reference.

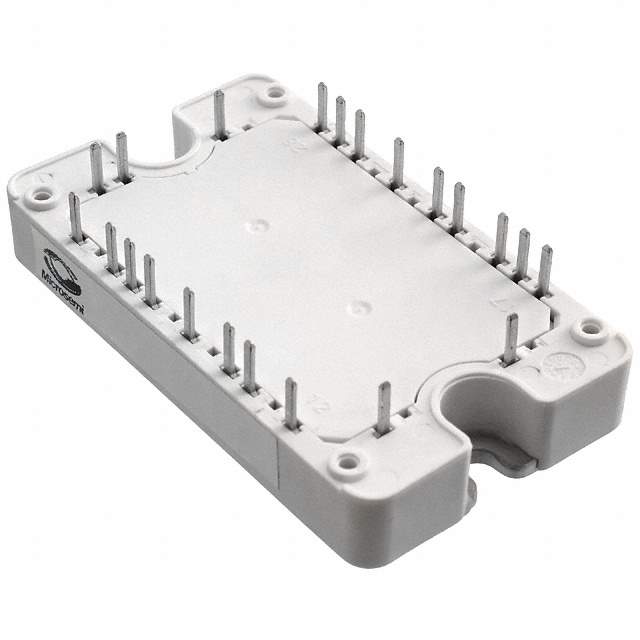

APTCV60HM45BC20T3G Real Image
Same model may have multiple batches, images only for reference.

APTCV60HM45BC20T3G

Part No APTCV60HM45BC20T3G
Manufacturer Microsemi Corporation
Catalog IGBTs - Modules
Description POWER MOD IGBT3 FULL BRIDGE SP3 / Power Module 22-Pin Case SP-3 Tube
Datasheet
APTCV60HM45BC20T3G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
IGBT Type Trench Field Stop
Configuration Boost Chopper, Full Bridge
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 50A
Power - Max 250W
Vce(on) (Maximum) @ Vge, Ic 1.9V @ 15V, 50A
Current - Collector Cutoff (Maximum) 250μA
Input Capacitance (Cies) @ Vce 3.15nF @ 25V
Input Standard
NTC Thermistor Yes
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package SP3
Manufacturer Package SP3
Win Source Part Number 768719-APTCV60HM45BC20T3G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name APTCV60HM45BC20T3G
Introduction Date January 05, 2011
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian APTCV60HM45BC20T3G CAD Model

Description

The Microsemi Corporation APTCV60HM45BC20T3G is a boost chopper, full bridge configuration IGBT module that is suitable for use in various applications requiring high power output.

  • Maximum Power Rating: 250W
  • Collector Current (Ic): 50A
  • Voltage Breakdown: 600V
  • Collector Cutoff: 250μA
  • Input Capacitance (Cies) @ 25V: 3.15nF
  • Thermistor: NTC
  • Operating Temperature Range (TJ): -40°C to 150°C
  • Mounting: Chassis
  • IGBT Type: Trench Field Stop
  • Vce(on): 1.9V @ 15V, 50A
  • Package: SP3
  • Status: Limited Supply and Demand
  • EOL Date: 2023
