Same model may have multiple batches, images only for reference.

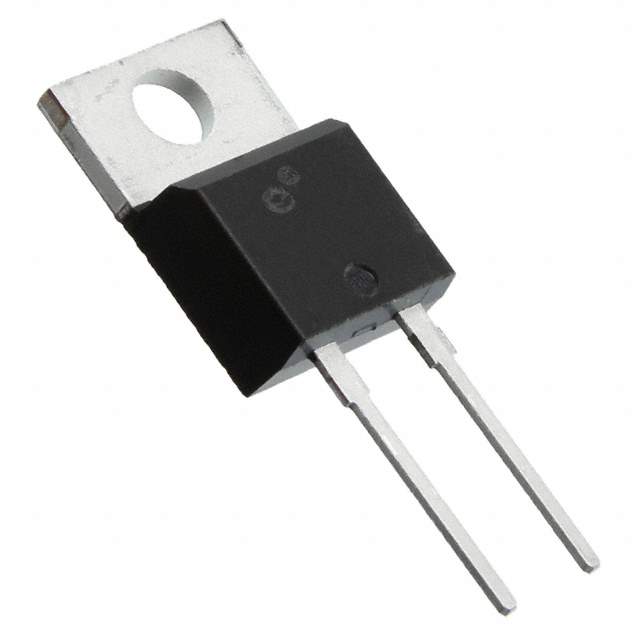

APT20SCD65K Real Image
Same model may have multiple batches, images only for reference.

APT20SCD65K

Part No APT20SCD65K
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE SILICON 650V 32A TO220
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Microsemi Corporation
Packaging Bulk
Part Status Obsolete (End Of Life)
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 650V
Current - Average Rectified (Io) 32A
Voltage - Forward (Vf) (Maximum) at If 1.8V at 20A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage at Vr 400μA at 650V
Capacitance at Vr, F 680pF at 100mV, 1MHz
Mounting Style Through Hole
Manufacturer Package TO-220-2
Supplier Device Package TO-220 [K]
Operating Temperature - Junction -55°C ~ 150°C
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809952-APT20SCD65K
Ultra Librarian 3D Model Ultra Librarian APT20SCD65K CAD Model

Description

The Microsemi Corporation APT20SCD65K is an obsolete (end of life) silicon carbide Schottky diode that is supplied in bulk packaging.

  • Mounting Type: Through Hole
  • Recovery Time: 0ns
  • Current-Average Rectified (Io): 32A
  • Supplier Device Package: TO-220 [K]
  • Manufacturer Package: TO-220-2
  • Voltage-DC Reverse (Vr) (maximum): 650V
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (unlimited)
  • Voltage-Forward (Vf) (maximum) @ If: 1.8V @ 20A
  • Current-Reverse Leakage @ Vr: 400μA @ 650V
  • Capacitance @ Vr, F: 680pF @ 100mV, 1MHz
  • Operating Temperature Range: -55°C to 150°C
