Same model may have multiple batches, images only for reference.

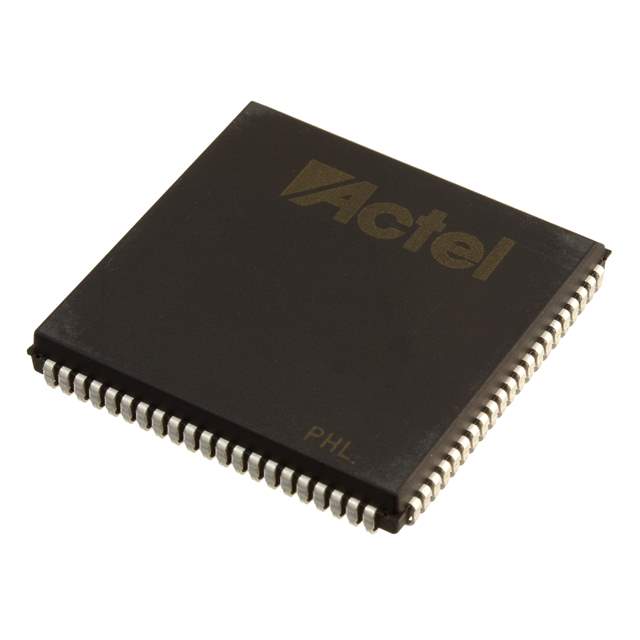

A42MX16-PL84 Real Image
Same model may have multiple batches, images only for reference.

A42MX16-PL84

Part No A42MX16-PL84
Manufacturer Microsemi Corporation
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 72 I/O 84PLCC
Datasheet
A42MX16-PL84 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Microsemi Corporation
Series MX
Number of I/O 72
Number of Gates 24000
Operating Supply Voltage 3 V ~ 3.6 V, 4.75 V ~ 5.25 V
Mounting SMD
Operating Temperature Range 0°C ~ 70°C (TA)
Package 84-LCC (J-Lead)
Manufacturer Package 84-PLCC (29.31x29.31)
Win Source Part Number 766748-A42MX16-PL84
Popularity Medium
Supply and Demand Status Limited
Family Name A42MX16
Introduction Date August 27, 1997
ECCN 3A991.d.2
Country of Origin Hong Kong
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian A42MX16-PL84 CAD Model

Description

The Microsemi Corporation A42MX16 PLD is a powerful integrated circuit with 24000 gates and 72 I/O pins.

  • Series: MX
  • Package: 84-LCC (J-Lead)
  • Operating Temperature Range: 0°C to 70°C
  • Operating Supply Voltages: 3 V to 3.6 V, 4.75 V to 5.25 V
  • Supply and Demand Status: Limited
  • Alternative Parts: XC4006E-1PC84M, XC4006E-6PC84C, XC4006E-5PC84C
