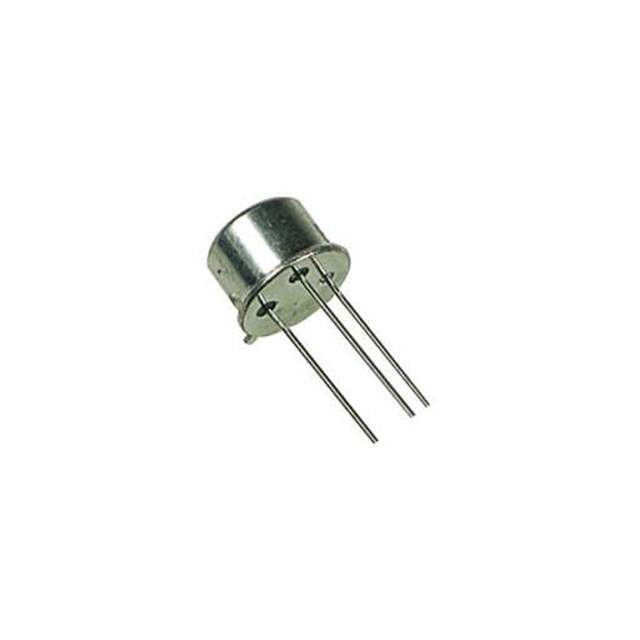

2N2329 Real Image
Same model may have multiple batches, images only for reference.

2N2329

Part No 2N2329
Manufacturer Microsemi Corporation
Catalog SCRs - Single
Description SILICON CONTROLLED RECTIFIER | DIODE 400VDC TO-5
Datasheet
2N2329 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Status Obsolete
Voltage - Off State 400V
Voltage - Gate Trigger (Vgt) (Maximum) 800mV
Current - Gate Trigger (Igt) (Maximum) 200μA
Current - On State (It (AV)) (Maximum) 220mA
Current - Hold (Ih) (Maximum) 2mA
SCR Type Sensitive Gate
Temperature Range - Operating -65°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package TO-205AA, TO-5-3 Metal Can
Supplier Device Package TO-5
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123655-2N2329
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N2329 CAD Model

Description

The Microsemi Corporation 2N2329 is a through-hole SCR type sensitive gate designed for discrete semiconductor products. The device has a voltage off state of 400V and can withstand temperatures ranging from -65°C to 125°C. It features a voltage gate trigger (Vgt) (maximum) of 800mV, a current gate trigger (Igt) (maximum) of 200μA, a current hold (Ih) (maximum) of 2mA, and a current on state (It (AV)) (maximum) of 220mA. The device comes in a TO-5 package and is available in bulk quantities.
