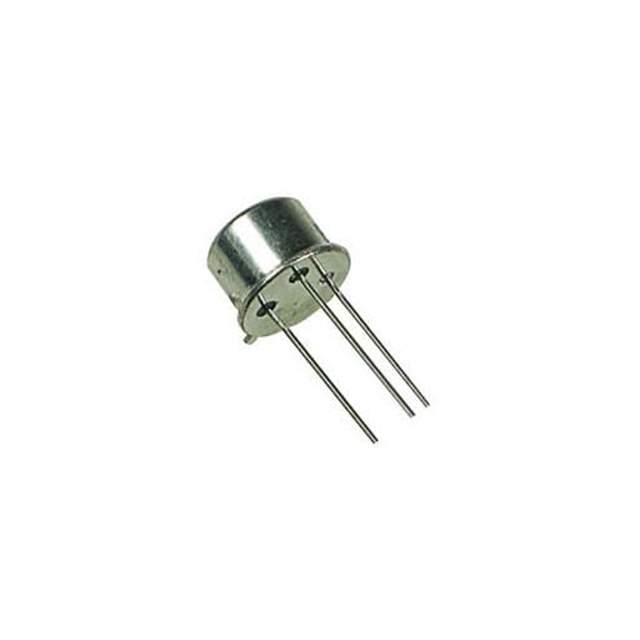

2N2323 Real Image
Same model may have multiple batches, images only for reference.

2N2323

Part No 2N2323
Manufacturer Microsemi Corporation
Catalog SCRs - Single
Description SILICON CONTROLLED RECTIFIER | DIODE SILICON CTRL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Status Obsolete
Voltage - Off State 50V
Voltage - Gate Trigger (Vgt) (Maximum) 800mV
Current - Gate Trigger (Igt) (Maximum) 200μA
Current - On State (It (AV)) (Maximum) 220mA
Current - Hold (Ih) (Maximum) 2mA
SCR Type Sensitive Gate
Temperature Range - Operating -65°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package TO-205AA, TO-5-3 Metal Can
Supplier Device Package TO-5
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123651-2N2323
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N2323 CAD Model

Description

The Microsemi Corporation 1123651-2N2323 is a sensitive gate SCR type electronic component that is designed for use in discrete semiconductor products.

  • Device Type: Sensitive Gate SCR
  • Mounting Style: Through-Hole
  • Voltage-Off State: 50V
  • Gate Trigger Voltage (Vgt): 800mV (Maximum)
  • Gate Trigger Current (Igt): 200μA (Maximum)
  • On-State Current: 220mA (Maximum)
  • Hold Current: 2mA (Maximum)
  • Status: Obsolete
  • Supply: Limited
  • Package: TO-5-3 Metal Can with a TO-205AA
