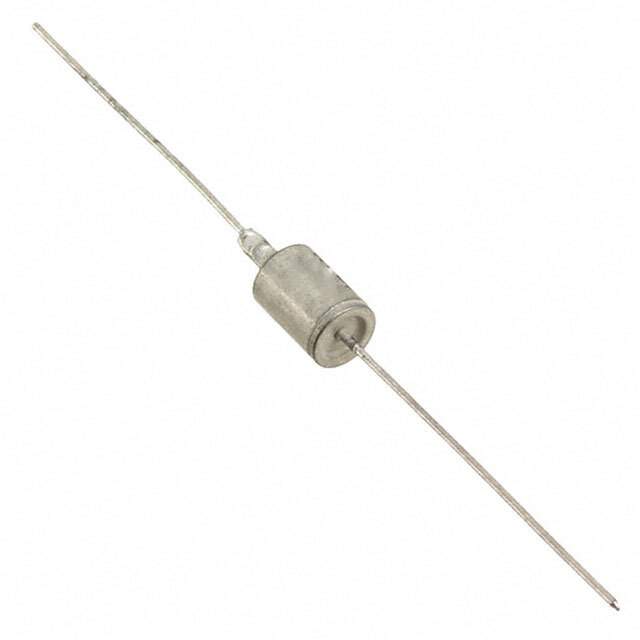

1N5656A Real Image
Same model may have multiple batches, images only for reference.

1N5656A

Part No 1N5656A
Manufacturer Microsemi Corporation
Catalog TVS - Diodes
Description TVS DIODE 77.8V 125V DO13 / DO-13 PACKAGE-GLASS TO METAL HERMETICALLY SEALED
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Microsemi Corporation
Packaging Bulk
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 77.8V
Voltage - Breakdown (Min) 86.5V
Voltage - Clamping (Maximum) at Ipp 125V
Current - Peak Pulse (10/1000μs) 12A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications Use For General
Temperature Range - Operating -65°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package DO-13
Supplier Device Package DO-13
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813450-1N5656A
Ultra Librarian 3D Model Ultra Librarian 1N5656A CAD Model

Description

The 1N5656A is an electronic component manufactured by Microsemi Corporation. It is a zener diode that comes in bulk packaging and is designed to be used for general applications. The supply and demand status is limited.

  • Type: Zener Diode
  • Packaging: Bulk
  • Applications: General
  • Supply and Demand Status: Limited
