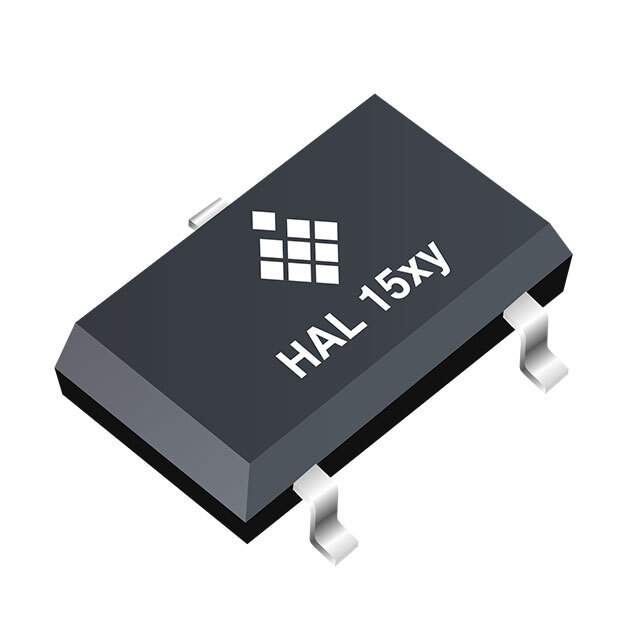

The HAL1563SU is a versatile programmable linear Hall effect sensor from Micronas GmbH (now part of TDK-Micronas). It is designed to measure magnetic fields and convert them into an analog voltage output. This sensor is highly configurable, allowing users to tailor its performance to specific application requirements.

Applications:

• Current sensing
• Position sensing
• Angle sensing
• Linear displacement measurement
• Rotary position measurement

Features:

• Linear output voltage proportional to magnetic field
• Programmable sensitivity and offset
• Programmable temperature compensation
• Wide operating temperature range
• Short circuit and overvoltage protection
• Low noise performance
• Small package size (typically SOT23 or similar)

Benefits:

• Accurate and reliable magnetic field measurement
• Flexibility to adapt to different application requirements through programmability
• Stable performance over temperature variations due to temperature compensation
• Robust protection against electrical stresses
• High signal-to-noise ratio for precise measurements
• Easy integration into various systems due to its small size

Additional Details:

The HAL1563SU typically operates from a 5V power supply. The programming interface is often accessed via a serial interface (e.g., I2C). The sensitivity, offset, and temperature compensation parameters are stored in non-volatile memory within the sensor. Refer to the Micronas/TDK-Micronas datasheet for detailed information on programming, electrical characteristics, and application circuits. Proper magnetic circuit design is crucial for achieving optimal performance in specific applications.
