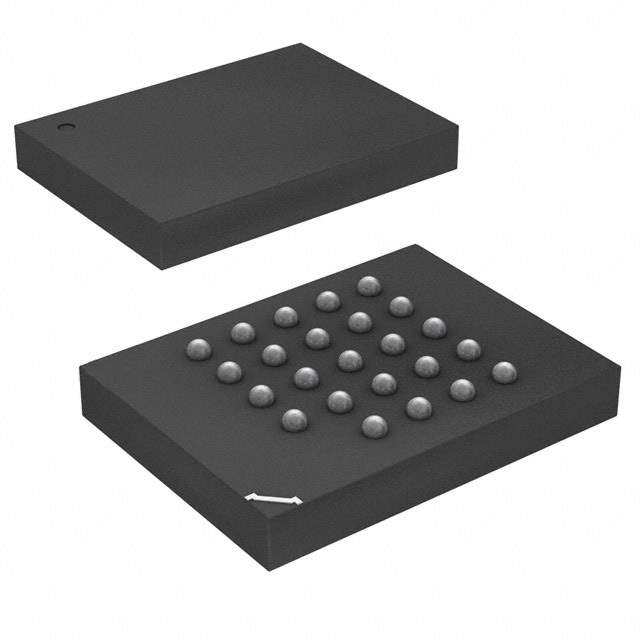

The N25Q512A83G1240F is a 512Mb (536,870,912 bits) Serial Flash Memory device manufactured by Micron Technology. As a member of the N25Q family, it is known for its high performance, reliability, and low power consumption. This memory chip utilizes a standard Serial Peripheral Interface (SPI) for communication, making it easily integrated into a wide variety of embedded systems requiring high-density, non-volatile memory.

Applications

• Embedded systems where high-density non-volatile storage is needed for boot code, application code, and data.
• Automotive systems: Used in navigation systems, infotainment systems, and advanced driver-assistance systems (ADAS) for storing map data, firmware updates, and configuration settings.
• Industrial control systems: Implemented in programmable logic controllers (PLCs) and human-machine interfaces (HMIs) for storing program code, data logging information, and configuration settings.
• Networking equipment: Used in routers, switches, and other network devices for storing boot code, firmware images, and configuration data.
• Consumer electronics: Found in set-top boxes, digital TVs, gaming consoles, and other devices for storing firmware, application data, and multimedia content.

Features

• Density: 512Mb (536,870,912 bits)
• Interface: SPI (Serial Peripheral Interface)
• Supply Voltage: 2.7V to 3.6V
• Operating Temperature: -40°C to +85°C
• Page Size: 256 bytes
• Sector Size: 4KB
• Block Size: 64KB
• High Performance: Provides fast read and write speeds for efficient data access and quick system responsiveness.
• Security Features: Incorporates block protection and password protection to safeguard stored data against unauthorized access.
• Advanced Sector Protection: Offers individual sector locking to protect critical code and data from accidental or malicious modification.
• Serial Command Set: Adheres to an industry-standard serial command set, simplifying integration and control.

Benefits

• Reliable Storage: Provides non-volatile storage, ensuring data retention even when power is removed.
• High Capacity: Offers ample storage space for large code bases, extensive data sets, and complex configuration settings.
• Fast Performance: Enables quick boot times and efficient data handling, improving overall system performance and user experience.
• Low Power Consumption: Minimizes power consumption, making it suitable for battery-powered devices and energy-efficient applications.
• Compact Size: Small footprint allows for integration into space-constrained designs.
• Easy Integration: Standard SPI interface simplifies connection to microcontrollers and other system components.

Additional Details

The N25Q512A83G1240F supports standard, dual, and quad SPI operation modes, enabling flexible data transfer rates. It includes a deep power-down mode to further reduce power consumption when not actively in use. The device is available in various package options to suit different board layout requirements. It also features one-time programmable (OTP) memory for securely storing critical information. The extended operating temperature range ensures reliable operation in demanding environmental conditions.
