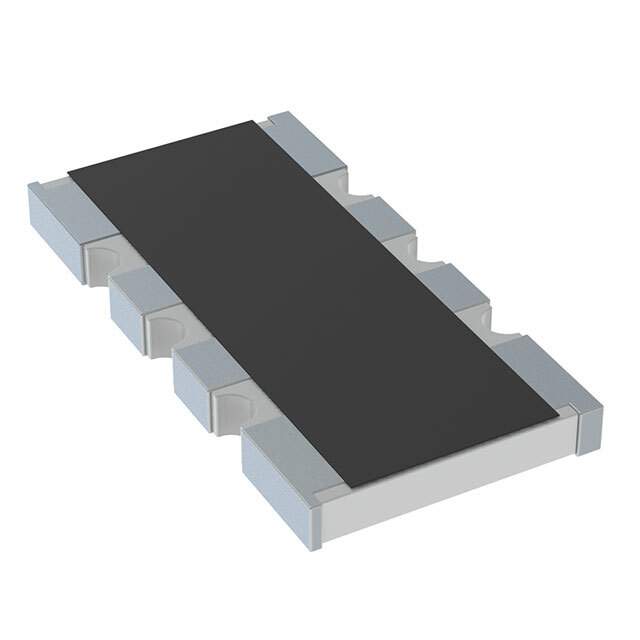

The CAY16-2201F4LF is a thick film resistor network array manufactured by Bourns. It consists of multiple resistor elements integrated into a single package. These resistor networks are commonly used for voltage dividers, current limiting, and pull-up/pull-down resistor configurations.

Applications

• Voltage dividers
• Current limiting resistors
• Pull-up resistors
• Pull-down resistors
• Digital circuits
• Analog circuits
• LED current limiting

Features

• Four isolated resistors in one package
• Thick film construction
• Surface mount package
• RoHS compliant
• Concave Termination Style

Benefits

• Reduced Component Count: Replacing multiple discrete resistors with a single resistor network reduces the component count, simplifying board layout and assembly.
• Space Saving: The compact surface mount package saves valuable board space, enabling smaller and more densely packed designs.
• Improved Accuracy: Resistor networks offer better matching and tracking performance compared to discrete resistors, improving circuit accuracy and stability.
• Simplified Assembly: Reduces the number of placements during assembly, saving time and cost.

Additional Details

The CAY16-2201F4LF contains four isolated 2.2 kΩ resistors. It is a surface mount device (SMD) in a 1608 (0603 x4) package. Each resistor has a power rating of 0.063W (1/16W), with a total package power rating of 0.25W. The tolerance is 1% and the temperature coefficient of resistance (TCR) is ±100 ppm/°C. It is RoHS compliant.
