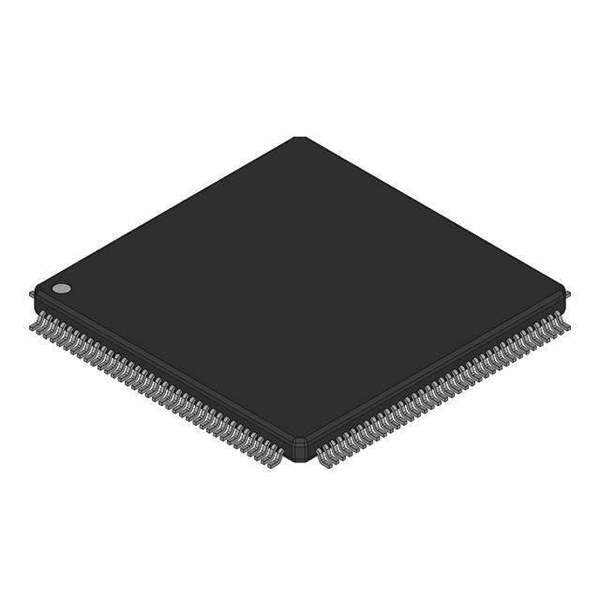

MC9S12XD256MAG Real Image
Same model may have multiple batches, images only for reference.

MC9S12XD256MAG

Part No MC9S12XD256MAG
Manufacturer Micron Technology Inc.
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 256KB FLASH 144LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features HCS12X series Microcontroller IC 16-Bit 80MHz 256KB (256K x 8) FLASH 144-LQFP (20x20)
Manufacturer NXP
Series HCS12X
Package Bulk
Part Status Obsolete
Core Processor HCS12X
Core Size 16-Bit
Speed 80MHz
Connectivity CANbus, EBI/EMI, I2C, IrDA, LINbus, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 119
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
Supply Voltage 2.35V ~ 5.5V
Data Converters A/D 24x10b
Oscillator Type External
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 144-LQFP
Case / Package 144-LQFP (20x20)
Family Name MC9S1
ECCN 3A991A2
HTSUS 8542.31.0001
Quantity per package 1
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 883940-MC9S12XD256MAG
Ultra Librarian 3D Model Ultra Librarian MC9S12XD256MAG CAD Model

Description

The NXP MC9S12XD256MAG is a microcontroller IC from the HCS12X series.

  • Manufacturer: NXP
  • Series: HCS12X
  • Core Size: 16-bit
  • Core Processor: 80 MHz HCS12X
  • Memory: 256 KB (256K x 8) FLASH
  • Connectivity: CANbus, EBI/EMI, I2C, IrDA, LINbus, SCI, and SPI
  • Package: Bulk
  • Package: 144-LQFP (20x20)
  • Supply and Demand Status: Limited
  • Classification: 3A991A2
  • Popularity: Medium
