Same model may have multiple batches, images only for reference.

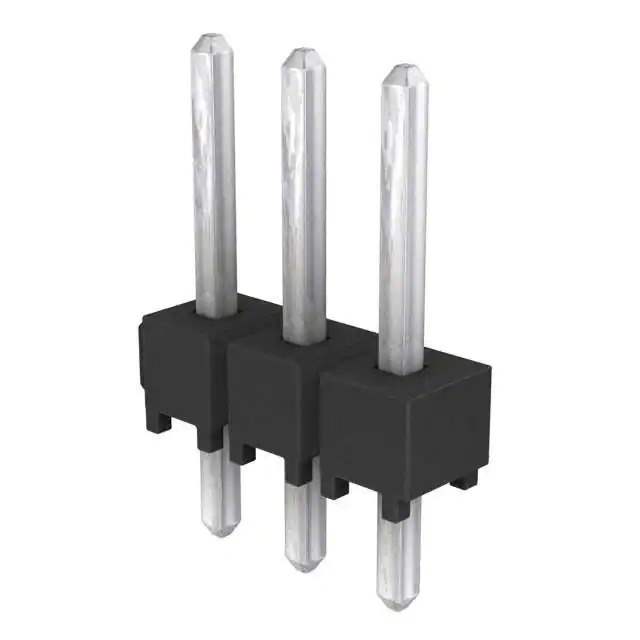

TSW-103-07-T-S Real Image
Same model may have multiple batches, images only for reference.

TSW-103-07-T-S

Part No TSW-103-07-T-S
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 2.54MM / Connector Header Through Hole 3 position 0.100" (2.54mm)
Datasheet
TSW-103-07-T-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TSW
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.100" (2.54mm)
Overall Contact Length 0.430" (10.92mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number TSW-103
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 937830-TSW-103-07-T-S
Ultra Librarian 3D Model Ultra Librarian TSW-103-07-T-S CAD Model

Description

The TSW series from Samtec Inc. offers a wide range of high-quality rectangular connectors for electronic applications. This particular connector, with part number 937830-TSW-103-07-T-S, is a male pin header with 3 positions and 1 row.

  • Contact Gender: Male Pin
  • Number of Positions: 3
  • Number of Rows: 1
  • Termination: Solder
  • Mounting Type: Through-Hole
  • Contact Material: Phosphor Bronze
  • Temperature Range: -55°C to 105°C
  • Voltage Rating: 0V
  • Contact Finish Mating: Tin
  • Contact Finish Post: Tin
  • Contact Shape: Square
  • Shrouding: Unshrouded
  • Package: Bulk, 1 piece
