Microchip Technology USB5534-JZX Product Overview

The USB5534-JZX is a high-performance, low-power USB 3.0 hub controller from the esteemed manufacturer, Microchip Technology. This versatile component is an ideal solution for a broad range of applications that require USB connectivity, including desktop and mobile PCs, docking stations, monitors, and many embedded systems.

Key Features

• USB 3.0 Compliance: The USB5534-JZX adheres to the SuperSpeed USB 3.0 specification, ensuring fast data transfer rates of up to 5 Gbps, which is ten times the speed of USB 2.0.
• Multiple Ports: It features four downstream ports for device connectivity and one upstream port for host connection, providing ample expandability for various USB devices.
• Energy Efficiency: The device supports USB 3.0 link power management, which includes idle, sleep, and suspend states, helping to reduce overall power consumption.
• Backward Compatibility: It is backward compatible with USB 2.0 and 1.1 devices, ensuring a wide range of devices can be connected even if they are not USB 3.0 compliant.
• Configurability: The USB5534-JZX can be configured via pin strapping, EEPROM, or SMBus, providing flexibility for system design and integration.

Applications

The versatility of the USB5534-JZX makes it suitable for an array of applications, including:

• Consumer Electronics
• Desktop and Laptop PCs
• Docking Stations
• Monitors with USB Hub Functionality
• Embedded Systems

Technical Specifications

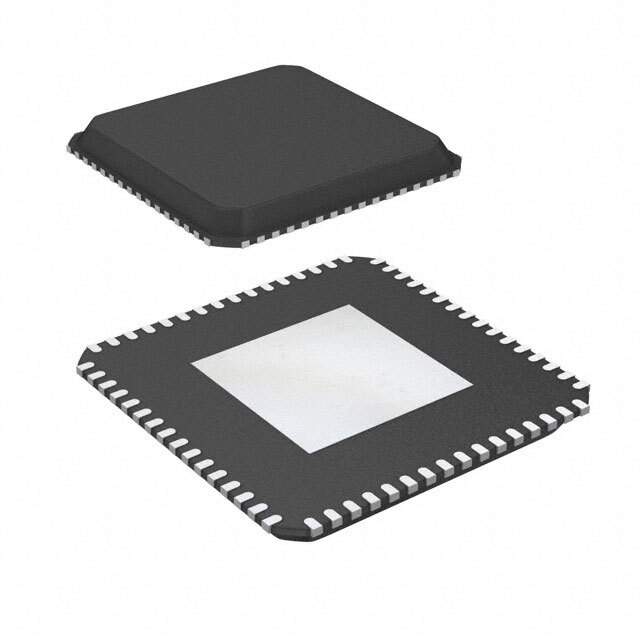

The USB5534-JZX operates over an industrial temperature range and comes in a 72-pin QFN package. It requires a single 3.3V power supply for operation and features integrated termination resistors for upstream and downstream ports, reducing the need for external components.

Conclusion

With its high-speed data transfer capabilities, energy-efficient design, and ease of integration, the USB5534-JZX from Microchip Technology stands out as a top-tier USB hub controller for designers looking to enhance their systems with robust USB functionality.
