Microchip Technology's TCM809SVLB713: A Reliable Voltage Supervisor

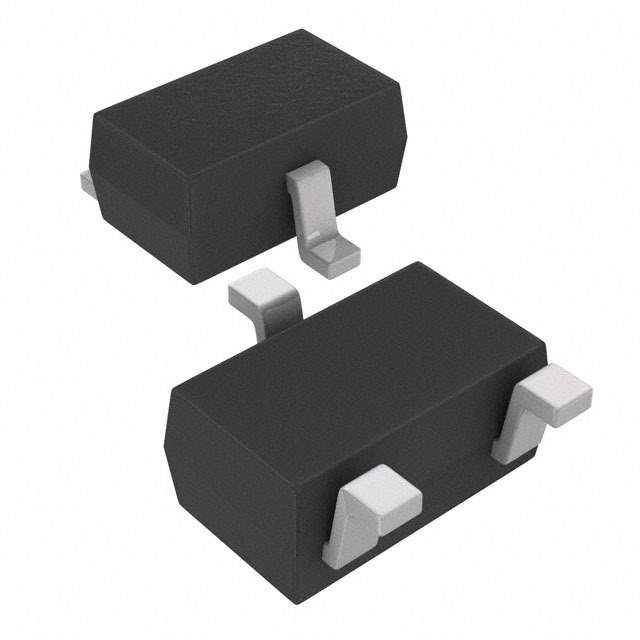

The TCM809SVLB713 is a robust voltage supervisor component designed and manufactured by Microchip Technology, a trusted name in the field of microcontroller, mixed-signal, analog, and Flash-IP integrated circuits. This device is specifically engineered to monitor the system voltage in microprocessor, microcontroller, and digital systems, providing a cost-effective solution for system reliability and performance.

Key Features

• Voltage Monitoring Precision: The TCM809SVLB713 offers a precise monitoring threshold voltage of 2.63V, which is essential for ensuring the correct operation of the system it protects.
• Reset Timeout Delay: With a built-in 140 ms minimum reset timeout delay, this component provides ample time for the system to stabilize before it resumes operation after a voltage drop.
• Low Power Consumption: Designed for power-sensitive applications, the device consumes minimal power, making it an ideal choice for battery-operated systems.
• Push-Pull Output: The push-pull RESET output stage of the TCM809SVLB713 negates the need for an external pull-up resistor, simplifying design and reducing component count.

Applications

The versatility of the TCM809SVLB713 allows it to be used in a wide array of applications, including:

• Portable/Battery-Powered Equipment
• Embedded Systems
• Computers and Computer Peripherals
• Intelligent Instruments
• Automotive Systems

Product Specifications

The TCM809SVLB713 operates over a temperature range of -40°C to +85°C, which ensures reliable performance under various environmental conditions. Its small SOT-23 package is ideal for space-constrained applications, providing a compact solution without compromising functionality.

Conclusion

With its precision voltage monitoring, built-in delay, low power consumption, and push-pull output, the TCM809SVLB713 from Microchip Technology is an essential component for any design requiring a reliable voltage supervisor. Its wide range of applications and robust specifications make it a versatile choice for designers looking to enhance system stability and safety.
