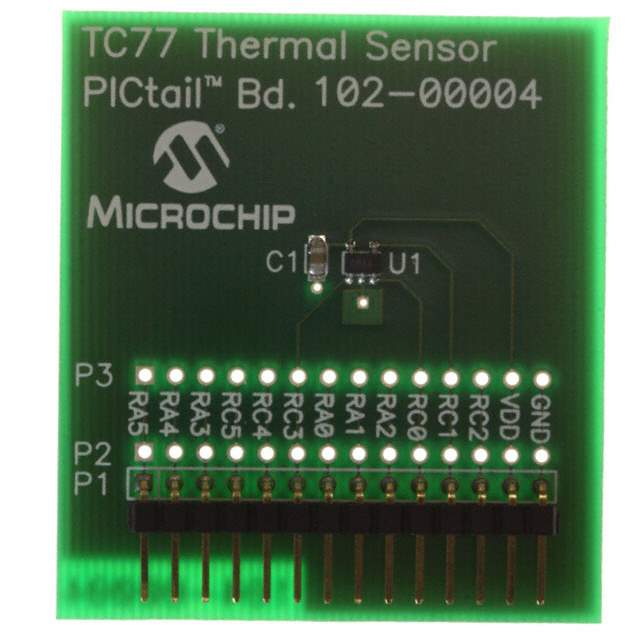

Microchip Technology TC77DM-PICTL Digital Temperature Sensor

The Microchip Technology TC77DM-PICTL is a precision digital temperature sensor designed for a wide range of applications requiring temperature monitoring and control. This sensor offers a high level of accuracy and ease of use, making it an ideal choice for both simple and complex thermal management tasks in various industries.

Embedded in a small 5-pin SOT-23 package, the TC77DM-PICTL is a space-efficient component that can be easily integrated into space-constrained designs. It operates over a temperature range of -40°C to +125°C, providing versatility for use in environments that experience extreme temperature fluctuations.

One of the key features of the TC77DM-PICTL is its SPI (Serial Peripheral Interface) compatibility, which allows for straightforward communication with microcontrollers and other digital systems. This digital interface ensures noise-immune data transfer and eliminates the need for analog-to-digital converters, simplifying the overall design and reducing system costs.

The sensor boasts a conversion rate of 8 samples per second, providing real-time temperature data with a resolution of 0.0625°C. Its built-in 13-bit ADC (Analog-to-Digital Converter) delivers a high degree of precision, making it suitable for applications that require accurate temperature readings, such as industrial control systems, consumer electronics, and PC hardware monitoring.

For added convenience, the TC77DM-PICTL features an active-low shutdown mode that significantly reduces power consumption when the sensor is not in use. This makes it an energy-efficient choice for battery-powered devices and applications where power conservation is critical.

In summary, the Microchip Technology TC77DM-PICTL digital temperature sensor is a reliable and precise solution for thermal monitoring needs. Its small footprint, high accuracy, SPI interface, and low-power shutdown mode make it a versatile component for designers and engineers looking to incorporate temperature sensing into their projects.

Note: For proper implementation, users should refer to the official datasheet provided by Microchip Technology for detailed specifications and application guidelines.
