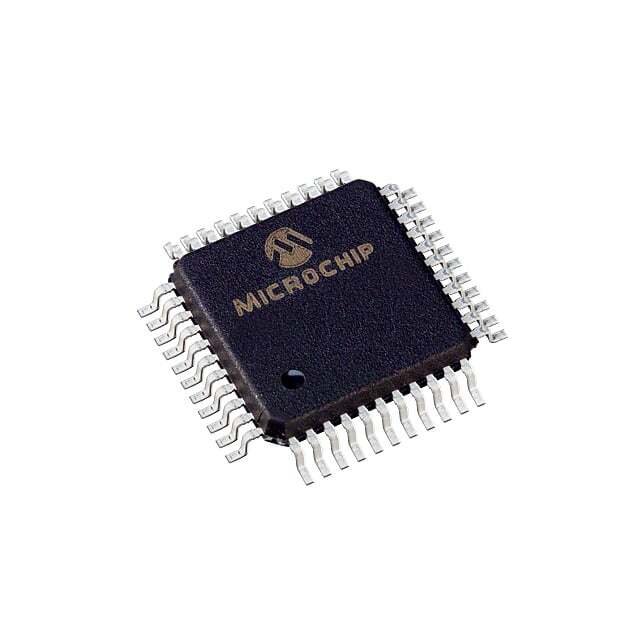

Microchip Technology TC7107ACKW713 Overview

The TC7107ACKW713 is a high-quality, 3½ digit Analog-to-Digital converter (ADC) from Microchip Technology, designed to offer both reliability and precision for a range of applications. This integrated circuit is particularly well-suited for interfacing with liquid crystal displays (LCDs) and has become a popular choice for engineers and designers in the creation of digital multimeters and other measurement equipment.

Key Features

• High Resolution: The TC7107ACKW713 boasts a 3½ digit resolution, making it capable of displaying readings up to ±1999. This allows for precise measurements critical in various technical and scientific applications.
• Direct LCD Drive: This device can directly drive an LCD, simplifying the design process by eliminating the need for additional components to interface the ADC with the display.
• Low Power Consumption: The power efficiency of the TC7107ACKW713 is ideal for portable battery-operated equipment, ensuring long operational life and reliability.
• True Differential Inputs: It features true differential inputs, which are essential for eliminating common-mode noise and improving measurement accuracy.
• Auto-Zero Function: The built-in auto-zero function ensures that the zero reading is maintained, enhancing the ADC's performance over time and temperature variations.
• Polarity Indicator: The device can indicate the polarity of the input signal, which is a critical feature for measurements that can have both positive and negative values.
• Overrange and Underrange Signals: The TC7107ACKW713 provides signals for overrange and underrange conditions, allowing for additional control and error handling in measurement systems.

Applications

The versatility of the TC7107ACKW713 makes it ideal for a wide range of applications, including:

• Digital multimeters
• Data acquisition systems
• Laboratory instruments
• Process control systems
• Portable measurement devices

With its combination of features, the TC7107ACKW713 from Microchip Technology stands out as a robust and flexible component for precision digital readout systems, offering engineers a reliable solution for their data conversion needs.
