Microchip Technology's TC4422ESM713 - High-Speed MOSFET Driver
The TC4422ESM713 is a robust, high-speed power MOSFET driver fabricated by Microchip Technology, designed to deliver outstanding performance in a wide array of applications. This driver is capable of providing a peak output current of 9A, making it an excellent choice for driving large capacitive loads with exceptional speed and efficiency.

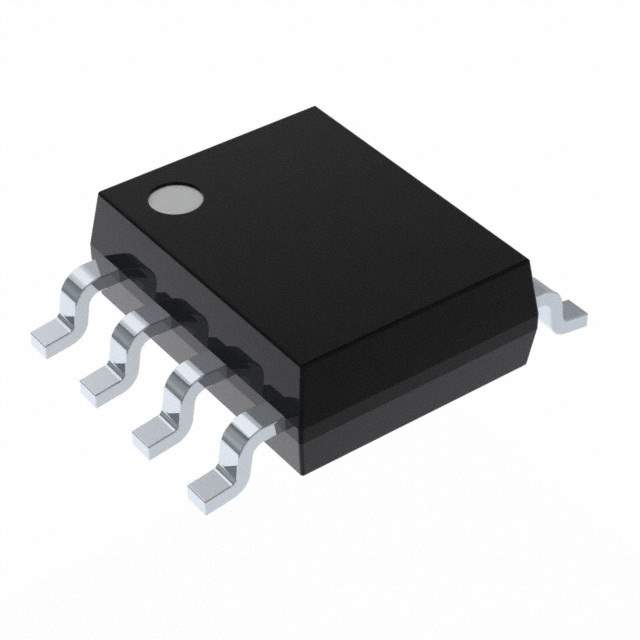

With its industry-standard 8-pin SOIC package, the TC4422ESM713 is a versatile component that can be easily integrated into various circuit designs. Its input is compatible with standard TTL and CMOS levels (down to 3.3V) which allows for direct interfacing with microcontrollers and logic devices without the need for additional level shifting. This feature simplifies the design process and reduces component count, leading to cost-effective and compact solutions.
The driver boasts a wide operating voltage range from 4.5V to 18V, providing designers with the flexibility to use it in systems with different supply voltages. This range ensures that the TC4422ESM713 can be employed in a variety of power environments, from battery-powered portable devices to industrial applications requiring higher voltages.
One of the key attributes of the TC4422ESM713 is its high-speed operation. It offers fast rise and fall times (typically 30ns), which is critical for applications that demand rapid switching for efficient operation. This high-speed performance minimizes power losses and improves the overall efficiency of the system, making it an ideal choice for power conversion, motor control, and other high-speed switching applications.
Additionally, the TC4422ESM713 is designed with protection features such as latch-up immunity and an input that withstands negative swings, ensuring reliable operation under harsh conditions. These protections contribute to the longevity and robustness of the device, making it a reliable choice for mission-critical applications.
In summary, the TC4422ESM713 from Microchip Technology is a high-performance, high-speed MOSFET driver that offers a blend of speed, efficiency, and reliability. Its compatibility with standard logic levels, wide operating voltage range, and built-in protection features make it an excellent choice for designers looking to create high-powered and dependable electronic systems.
