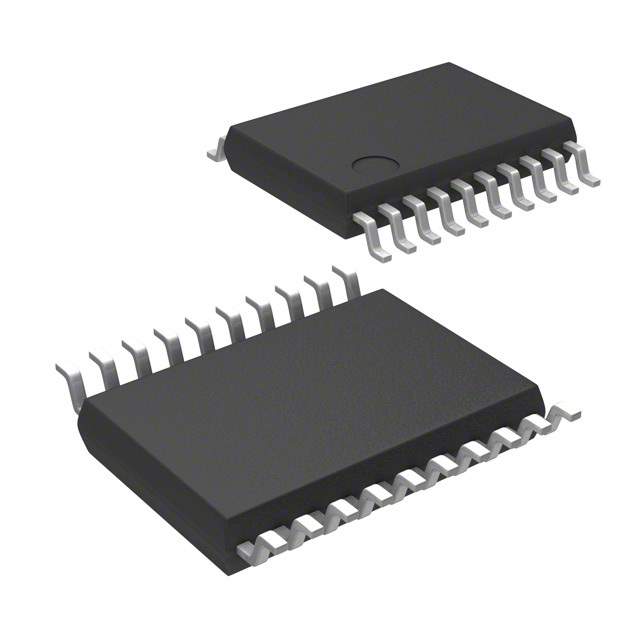

Microchip Technology SY100EP56VK4G Overview

The SY100EP56VK4G, manufactured by Microchip Technology, is a high-speed differential 2:1 multiplexer with a voltage-controlled differential input and a LVPECL output. This device is specifically designed for signal routing applications that require very fast switching between two LVPECL data sources. It is an ideal choice for various high-speed data communication protocols and networking equipment, where signal integrity and switching speed are critical.

Key Features

• High-Speed Operation: The SY100EP56VK4G operates at frequencies that support high-speed data transmission, making it suitable for demanding applications such as Gigabit Ethernet, Fiber Channel, and other telecommunication protocols.
• Differential Inputs and Outputs: The differential nature of the inputs and outputs ensures reduced signal noise and improved signal integrity, which is vital for maintaining the quality of high-speed data streams.
• Flexible Voltage Supply: The device can be powered by a supply voltage ranging from 3.0V to 5.5V, providing versatility in different system voltage environments.
• LVPECL Output: The Low Voltage Positive Emitter Coupled Logic (LVPECL) output offers compatibility with standard PECL systems and is designed to drive 50-ohm transmission lines.
• Power-Down Feature: A power-down input (/PD) allows the outputs to be put into a high-impedance state, thus conserving power when the device is not in active use.

Applications

The SY100EP56VK4G is versatile and can be used in a wide array of applications, including:

• High-speed data communications and telecommunication equipment
• Automated test equipment (ATE)
• High-frequency clock data distribution
• Switch fabric and router applications
• Signal gating and multiplexing in networking hardware

Microchip Technology's commitment to quality ensures that the SY100EP56VK4G meets the stringent requirements of high-speed signal processing applications. With its fast switching capabilities, robust design, and flexible power supply options, this multiplexer is a reliable solution for system designers looking to optimize their high-speed data paths.
