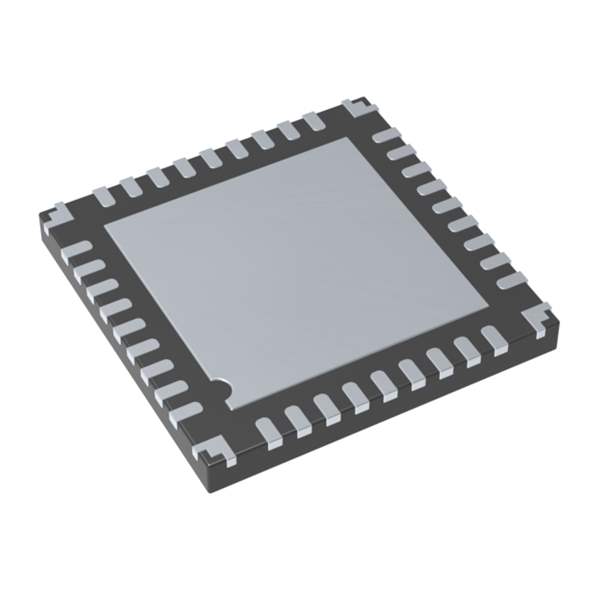

Product Overview: PIC24FJ32GU203-E/M5

The PIC24FJ32GU203-E/M5 is a high-performance microcontroller unit (MCU) from the renowned manufacturer Microchip Technology. It belongs to the PIC24F series, known for its rich feature set and versatility in handling various applications ranging from industrial control systems to consumer electronics.

Key Features

• Core: The MCU is built on a 16-bit architecture that provides a perfect balance between processing power and power consumption, making it ideal for energy-sensitive applications.
• Memory: It comes equipped with 32KB of Flash memory and 4KB of RAM, offering ample space for program storage and efficient runtime operations.
• Digital Signal Processing: With an integrated DSP engine, this microcontroller is capable of handling complex mathematical functions, which is beneficial for applications requiring signal processing.
• Communication Interfaces: A range of communication peripherals such as I2C, SPI, UART, and USB ensure versatile connectivity options for various external devices.
• Timers and PWM: Multiple timers, including 16-bit and 32-bit varieties, along with PWM (Pulse Width Modulation) outputs, provide precise control for tasks such as motor control and time-sensitive operations.
• Analog Features: The MCU includes a 10-bit Analog-to-Digital Converter (ADC) with up to 13 channels, allowing it to interface with analog sensors and inputs directly.
• Temperature Range: It operates within an extended temperature range, making it suitable for harsh environments.
• Package: The device comes in a 28-pin QFN package, which is known for its small footprint and high thermal performance.

Applications

The PIC24FJ32GU203-E/M5 is designed for a broad range of applications. It is particularly well-suited for portable devices due to its low power consumption. In addition, its processing capabilities make it an excellent choice for embedded systems, medical devices, smart sensors, and IoT (Internet of Things) applications where efficient data processing and connectivity are required.

With its robust set of features and Microchip's reputation for reliability, the PIC24FJ32GU203-E/M5 is a microcontroller that offers designers a flexible and powerful solution for their embedded system needs.
