Microchip Technology's PIC16F689-I/P Microcontroller

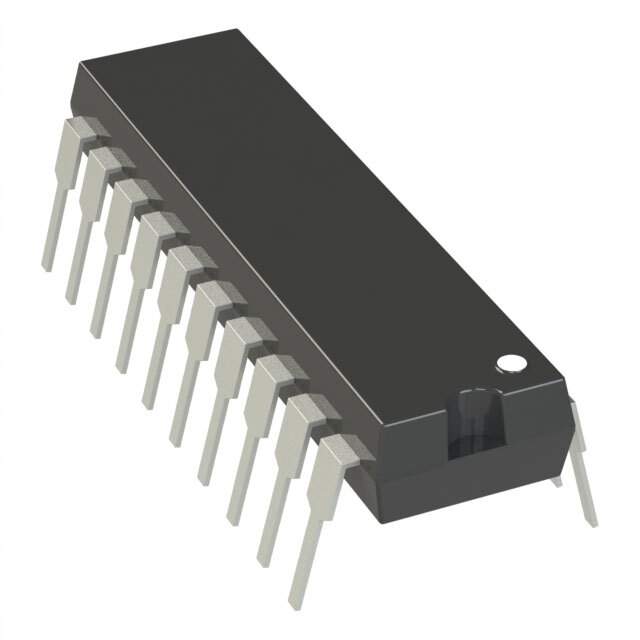

The PIC16F689-I/P is a versatile 8-bit microcontroller designed by Microchip Technology, a leader in providing smart, connected, and secure embedded control solutions. This particular model comes in a 20-pin PDIP (Plastic Dual In-line Package), which is ideal for prototyping and small production runs due to its through-hole design that allows for easy insertion and removal from a circuit board.

At the heart of the PIC16F689-I/P is a high-performance RISC CPU with a rich feature set tailored for a wide range of applications. The microcontroller boasts a 7 KB Flash program memory, 256 bytes of EEPROM data memory, and 256 bytes of RAM, making it suitable for various complex tasks. Its operating speed is up to 20 MHz, providing a speedy response and efficient processing capabilities.

One of the standout features of the PIC16F689-I/P is its enhanced peripheral set, which includes 18 I/O pins, an 8-channel 10-bit Analog-to-Digital Converter (ADC), two comparators, and two PWM (Pulse Width Modulation) modules. These features allow for easy interface with analog sensors and provide the ability to control motors or generate waveforms. Additionally, it has a serial communication module that supports both SPI and I2C protocols, making it easy to communicate with other microcontrollers and peripherals.

The microcontroller also features Power-Saving Sleep mode, an important aspect for battery-powered applications. This allows the device to conserve power when not in active use. Furthermore, the PIC16F689-I/P has an extended operating voltage range from 2.0V to 5.5V, providing flexibility in power supply design and ensuring compatibility with both TTL and CMOS logic levels.

Microchip's PIC16F689-I/P is equipped with internal oscillators, eliminating the need for external clock sources, which simplifies circuit design and reduces component count. It also includes a programmable Brown-out Reset (BOR) and an Extended Watchdog Timer (WDT), which enhance the reliability of the system by protecting against unexpected system failures.

Overall, the PIC16F689-I/P from Microchip Technology is a robust and feature-rich microcontroller that is well-suited for a variety of applications ranging from industrial control systems to consumer electronics. Its ease of use, combined with extensive support and resources from Microchip, makes it an excellent choice for both hobbyists and professional developers alike.
