Microchip Technology's PD70224ILQ-TR: An Innovative PoE Solution

The PD70224ILQ-TR by Microchip Technology is a state-of-the-art Power over Ethernet (PoE) Integrated Circuit (IC) designed to streamline the delivery of power to remote devices over Ethernet cabling. This innovative product is part of Microchip's extensive PoE portfolio and is particularly suitable for applications in the telecommunications, networking, and security sectors.

Key Features and Benefits

• IEEE 802.3at Compliance: The PD70224ILQ-TR adheres to the IEEE 802.3at standard for PoE, ensuring compatibility with a wide range of devices and systems. This standard allows for the delivery of up to 30 Watts of power per port, making it an ideal solution for high-power applications.
• Energy Efficiency: With its advanced power management capabilities, the PD70224ILQ-TR minimizes power loss and improves overall system efficiency. This not only reduces energy costs but also extends the lifespan of the powered devices.
• Flexible Power Supply Options: This IC supports a variety of power supply configurations, including AC-DC and DC-DC power supplies, providing design flexibility to meet the specific needs of different applications.
• Integrated Protection: The PD70224ILQ-TR comes with built-in protection features such as over-current, over-voltage, under-voltage lockout, and thermal protection. These features ensure the safe and reliable operation of the powered devices and the PoE system as a whole.

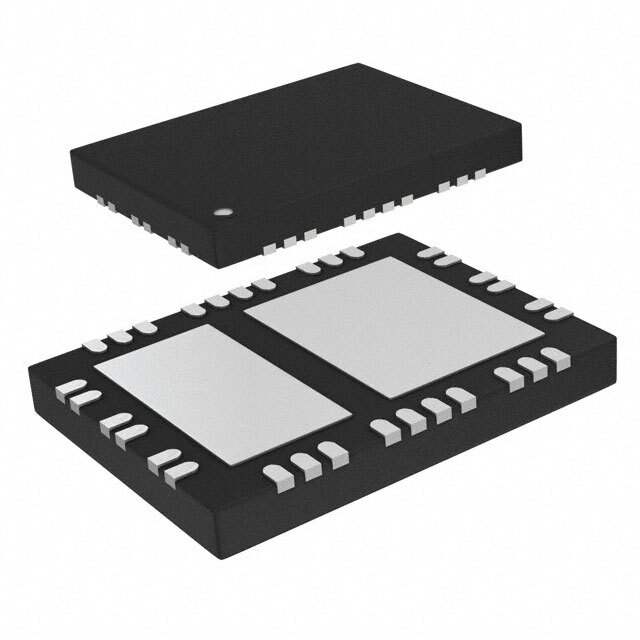

• Compact Design: The IC is offered in a compact QFN package, making it suitable for space-constrained applications. This small form factor allows for the design of more compact and efficient PoE-enabled devices.
• Easy Implementation: With its simple integration and minimal external components required, the PD70224ILQ-TR facilitates easy implementation into existing and new designs, reducing time to market for PoE-enabled products.

Whether it's for powering IP cameras, VoIP phones, wireless access points, or any other Ethernet-powered device, the PD70224ILQ-TR from Microchip Technology offers a robust and efficient solution. Its combination of high power, efficiency, and protection features make it a top choice for designers looking to incorporate PoE functionality into their products.
