Microchip Technology MIC94060YML TR - High-Side Load Switch

The MIC94060YML TR from Microchip Technology is a high-side load switch designed for operation from 1.7V to 5.5V, making it ideal for battery-powered and portable applications. This load switch provides a compact and efficient way to control power to a subsystem or an IC, without the need for an external MOSFET and its associated gate drive circuitry.

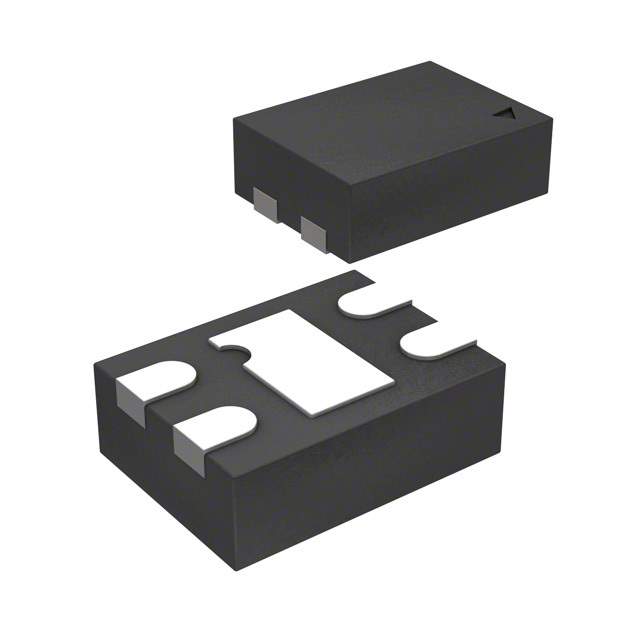

The MIC94060YML TR is housed in a small 6-pin 1.2mm x 1.6mm Thin MLF® package, which is perfect for space-constrained applications. This load switch features a low on-resistance of 65mΩ typical at 5.5V, ensuring minimal voltage drop and power loss across the switch when it is in the ON state. The low on-resistance also helps in maintaining high efficiency, which is critical in battery-operated devices to maximize battery life.

One of the key features of the MIC94060YML TR is its fast turn-on time of 25µs, which allows for quick power-up of connected loads. Additionally, it includes an active high enable input that simplifies interfacing with microcontrollers or other control logic. This product also boasts an integrated slew rate control, which minimizes inrush current during turn-on, thereby reducing the impact on the power source and preventing voltage droops that could cause system instability.

The device is designed with built-in protection features, including over-temperature shutdown, to safeguard the load switch and the downstream components from excessive heat. Furthermore, the MIC94060YML TR is fully specified from -40°C to +125°C, which ensures reliable operation over a wide temperature range, suitable for industrial and automotive applications.

Overall, the Microchip Technology MIC94060YML TR is a robust and reliable solution for power distribution and management in a wide range of electronic devices. Its small footprint, ease of use, and comprehensive protection features make it an excellent choice for designers looking to optimize their power architecture with minimal external components.
