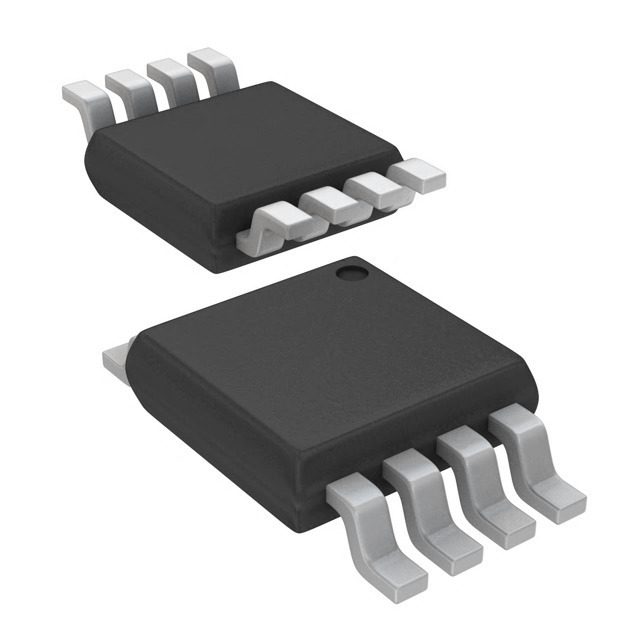

The MIC4826BMM from Microchip Technology is a highly integrated solution designed for driving small brushless DC (BLDC) fans and motors. This compact device comes in a space-saving 8-pin MSOP package, making it an ideal choice for applications where board space is at a premium.

Key Features

• Integrated H-Bridge: The MIC4826BMM features a built-in H-bridge motor driver capable of delivering a continuous output current of up to 1.5A. This allows for direct control of motor speed and direction without the need for additional external power transistors.
• Low Voltage Operation: Designed to operate over a wide supply voltage range from 2.7V to 5.5V, this device is suitable for use in portable and battery-operated equipment.
• Low Power Consumption: It has a quiescent current of just 120µA, which helps to maximize battery life in portable applications.
• Thermal Shutdown Protection: The MIC4826BMM includes an internal thermal shutdown feature that protects the device from overheating, enhancing system reliability.
• Under-Voltage Lockout (UVLO): The UVLO function ensures that the device operates at the correct voltage levels, preventing motor malfunction due to insufficient supply voltage.

Applications

The MIC4826BMM is versatile and can be used in various applications, including:

• Portable electronic devices
• Small cooling fans for computers and peripherals
• Battery-powered toys
• Healthcare devices

Advantages

The integration of multiple functions within the MIC4826BMM not only saves space but also reduces the complexity of the circuit design, leading to a quicker development cycle and easier manufacturing process. Its low power consumption and wide operating voltage range make it an excellent choice for energy-sensitive applications.

Conclusion

Overall, the MIC4826BMM from Microchip Technology is a powerful, efficient, and reliable solution for driving small motors in a variety of applications. Its compact size, integrated features, and ease of use make it an attractive option for designers looking to optimize their motor control systems.
