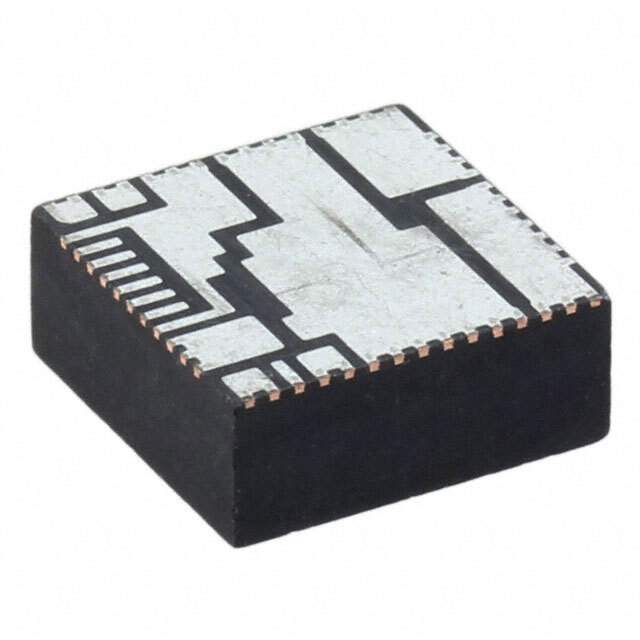

The MIC45208-1YMP-T1 is a high-performance, synchronous step-down regulator module from Microchip Technology, designed to deliver exceptional power efficiency and density. This regulator is part of Microchip's MIC45208 series and is particularly well-suited for applications in networking, telecommunications, and industrial markets where space is at a premium and power delivery needs to be both reliable and efficient.

Key Features

• Input Voltage Range: The module operates over a wide input voltage range of 4.5V to 26.5V, making it versatile for various applications.
• Output Voltage: It provides an adjustable output voltage from 0.7V to 5.5V, allowing for a wide range of uses in different circuit designs.
• High Current Capability: The MIC45208-1YMP-T1 can deliver up to 8A of continuous output current, catering to high-power applications.
• Efficiency: With its synchronous buck topology, the regulator achieves high efficiency, reducing power loss and heat generation.
• Thermal Management: The device includes an integrated inductor and comes in a thermally enhanced, compact QFN package, which aids in heat dissipation and promotes better thermal performance.
• Protection Features: It is equipped with a variety of protection features, including under-voltage lockout, over-temperature protection, and over-current protection, ensuring safe operation under abnormal conditions.
• Frequency Synchronization: The MIC45208-1YMP-T1 supports frequency synchronization to an external clock, which helps to minimize electromagnetic interference (EMI) in sensitive applications.

Applications

The MIC45208-1YMP-T1 is ideal for powering FPGAs, DSPs, and microprocessors. It is also suitable for use in servers, storage systems, and other space-constrained applications that require efficient power conversion. With its robust design and comprehensive feature set, this regulator module ensures reliable performance and simplifies the design of power supply systems.
