Microchip Technology MCP6022-I/ST Operational Amplifier

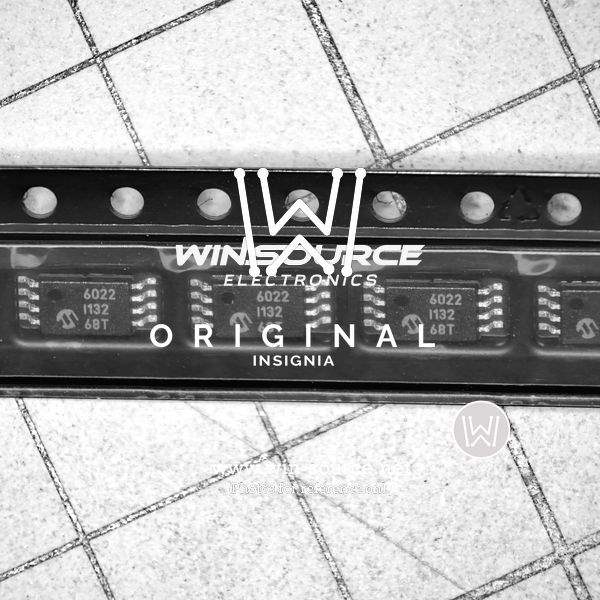

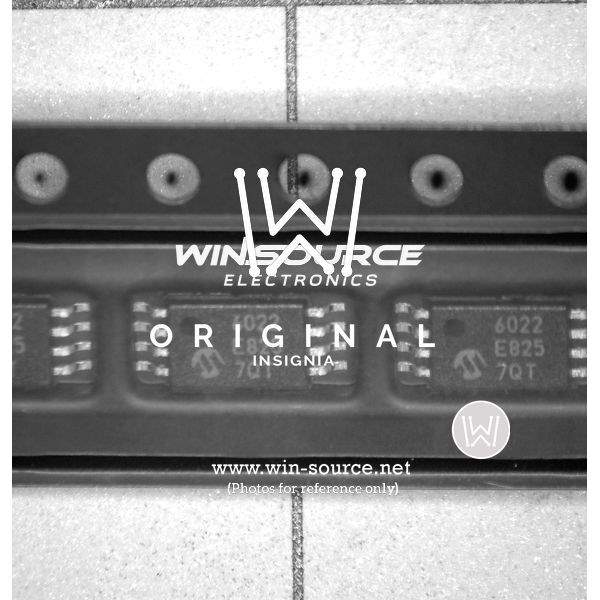

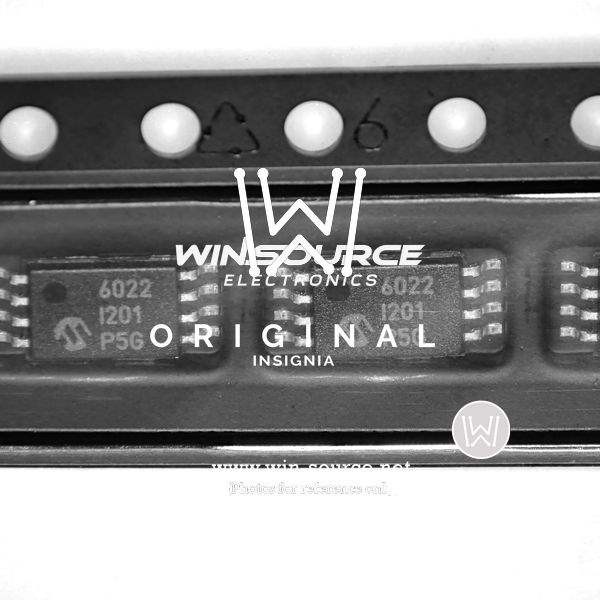

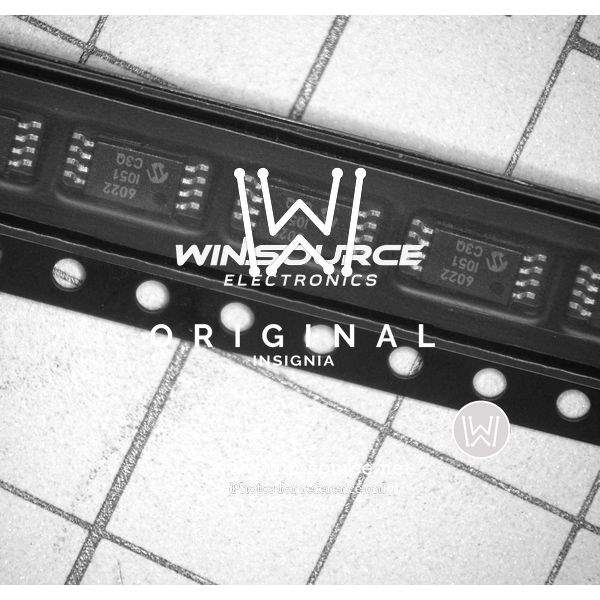

The MCP6022-I/ST is a high-performance operational amplifier (op-amp) developed by Microchip Technology, designed for analog applications that demand precision, low noise, and low-power consumption. This dual op-amp is packaged in a compact TSSOP-8 (Thin Shrink Small Outline Package), making it suitable for space-constrained applications.

With a supply voltage range of 2.7V to 5.5V, the MCP6022-I/ST is highly versatile, allowing it to be used in both single-supply and dual-supply configurations. This flexibility makes it ideal for battery-operated devices and various consumer electronics that require efficient power usage.

The op-amp boasts a gain bandwidth product of 10 MHz and a slew rate of 7.0 V/µs, ensuring fast and accurate signal amplification. These characteristics are essential for applications such as active filters, analog-to-digital converters, and other signal processing tasks that require high-speed operations.

Moreover, the MCP6022-I/ST features a low input bias current of 1 pA, which minimizes errors in high-impedance circuit designs. Its low input offset voltage of 150 µV (maximum) and low noise density of 8.7 nV/√Hz at 1 kHz contribute to its precision performance, making it an excellent choice for sensitive instrumentation and sensor interfaces.

For enhanced stability, the MCP6022-I/ST is designed with a Chip Select (CS) pin that provides a low-power standby mode, allowing the device to conserve energy when not in active operation. This feature is particularly useful in power-sensitive applications.

Lastly, the operational amplifier is specified over the extended temperature range of -40°C to +125°C, ensuring reliable performance in a wide range of environmental conditions. Whether used in industrial control systems, medical devices, or automotive electronics, the MCP6022-I/ST from Microchip Technology is a robust and precise operational amplifier that meets the needs of various high-performance applications.
