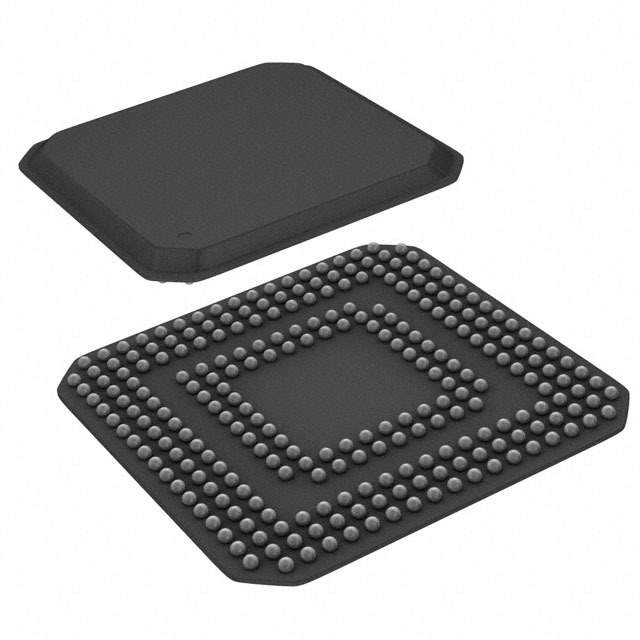

Introducing the ADS5122CZHK from Texas Instruments

The ADS5122CZHK is a high-performance, 12-bit analog-to-digital converter (ADC) designed by the renowned semiconductor manufacturer, Texas Instruments. This cutting-edge component is engineered to cater to a wide array of applications that require precise and high-speed data conversion. Whether it's for medical imaging, wireless communication, or test and measurement systems, the ADS5122CZHK stands out with its exceptional performance and reliability.

Key Features and Benefits

• High-Speed Performance: With a sampling rate of up to 65 MSPS (mega samples per second), the ADS5122CZHK is capable of handling high-speed signals without compromising on accuracy. This makes it an ideal choice for applications where rapid data acquisition is critical.
• Excellent Dynamic Range: The 12-bit resolution ensures that the ADC offers an excellent dynamic range, providing fine detail in signal conversion which is vital for applications like radar systems and digital oscilloscopes.
• Low Power Consumption: Designed with power efficiency in mind, the ADS5122CZHK maintains its high-speed performance while keeping power consumption to a minimum, thus enabling the design of energy-efficient systems.
• Flexible Input Range: The ADC supports a flexible input range, allowing it to accommodate various signal amplitudes. This versatility ensures that the ADS5122CZHK can be easily integrated into a wide range of electronic systems.
• Differential Inputs: The use of differential inputs reduces common-mode noise, thereby enhancing the signal integrity and overall performance of the conversion process.
• On-chip Reference: The inclusion of an on-chip reference voltage simplifies the design process by reducing the number of external components required, which can save space and cost on the PCB.

Applications

The ADS5122CZHK is ideally suited for a variety of demanding applications, including:

• Medical Imaging Systems
• Wireless Communication Infrastructure
• Direct RF Down Conversion
• Test and Measurement Equipment
• High-Resolution Imaging Systems
• Spectrum Analyzers

Overall, the ADS5122CZHK from Texas Instruments represents a blend of high-speed data acquisition, precision, and efficiency, making it a top choice for professionals seeking a robust ADC solution.
